HuMax HCT(230VAC EU plug)

Name: HuMax HCT(230VAC EU plug)
Brand: HUMAN Diagnostics Worldwide
SKU: 15500
Availability: InStock

CoreLab DXLaboratory EquipmentInstrumentsCentrifuges

Price per unit:

XXX,XX €

Get a consultation

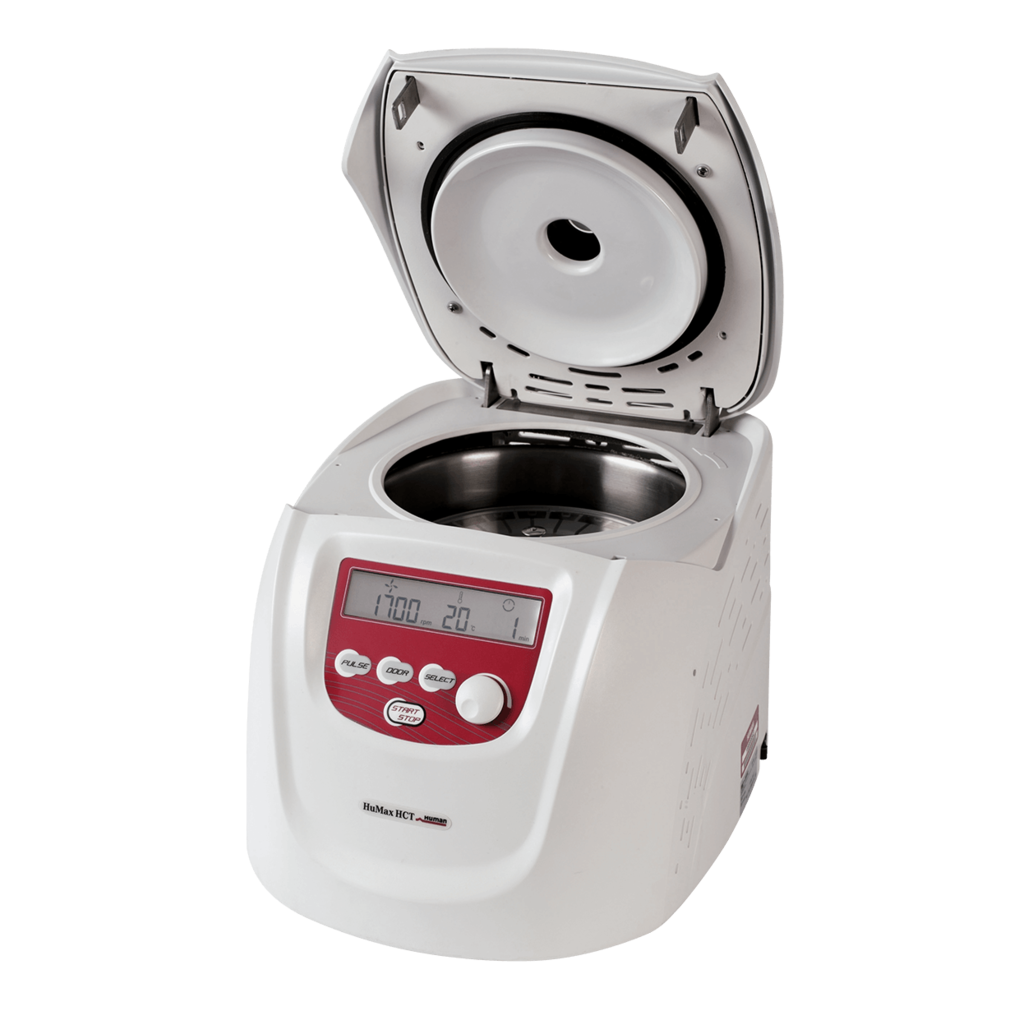

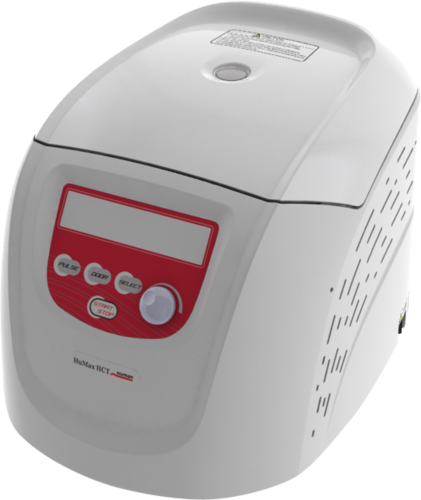

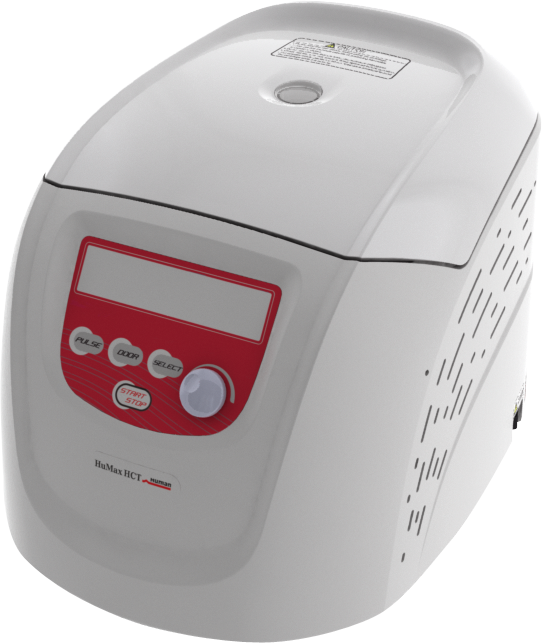

Hematocrit and microliter benchtop centrifuge

The HuMax HCT is a specialized centrifuge that is engineered to accurately determine the volume percentage of red blood cells and hematocrit in blood samples, a crucial parameter in diagnosing and monitoring conditions such as anemia and polycythemia.

Adjustable speed

Up to 14,000 rpm by 18,624 x g RCF.
Set the speed range by using the rotary knob

Capacity

Up to 24 x 2 ml tubes with the micorliter rotor or
up to 24 hematocrit capillary tubes with the hematocrit
rotor

User interface

Time and speed will be displayed on the control panel

Read disc and hematocrit rotor

The centrifuge will be delivered with a hematocrit rotor and a read disc where you can read the hematocrit values after the run

Timer

Set the timer from 30 sec uo to 99 min + hold poisition

Locks

Integreated dual lid lock for safety

Capillary tubes and sealing compund plates

Capillary tubes with 10 x 100 Na-hep REF 749311 ,
or 10 x 100 Non-hep REF 749321 are available. As well the sealing compund plates 10 pieces REF 749510

Techspecs

Maximum speed

14.000 rpm Fix Angle Rotor / Cat no. 15502
12.000 rpm Rotor / Cat. no.15501

Maximum RCF

15501 rotor: 13,680 x g
15502 rotor: 18,624 x g

Maximum capacity

15501 rotor: 24 x capillary tubes Ø 1,75 x 75 mm
15502 rotor: 24 x 2 ml

Speed set range

200 – 14.000 rpm

Speed set step

10 rpm

Display

Digital display for speed in RPM/RCF and time LID LED, Start LED

Rotor

15501 Hematocrit included
Available Rotors:
Fix-Angle: 15502

Dimension (WxDxH)

28 x 36,4 x 26,6 cm

Consumables 3 Accessories 5
