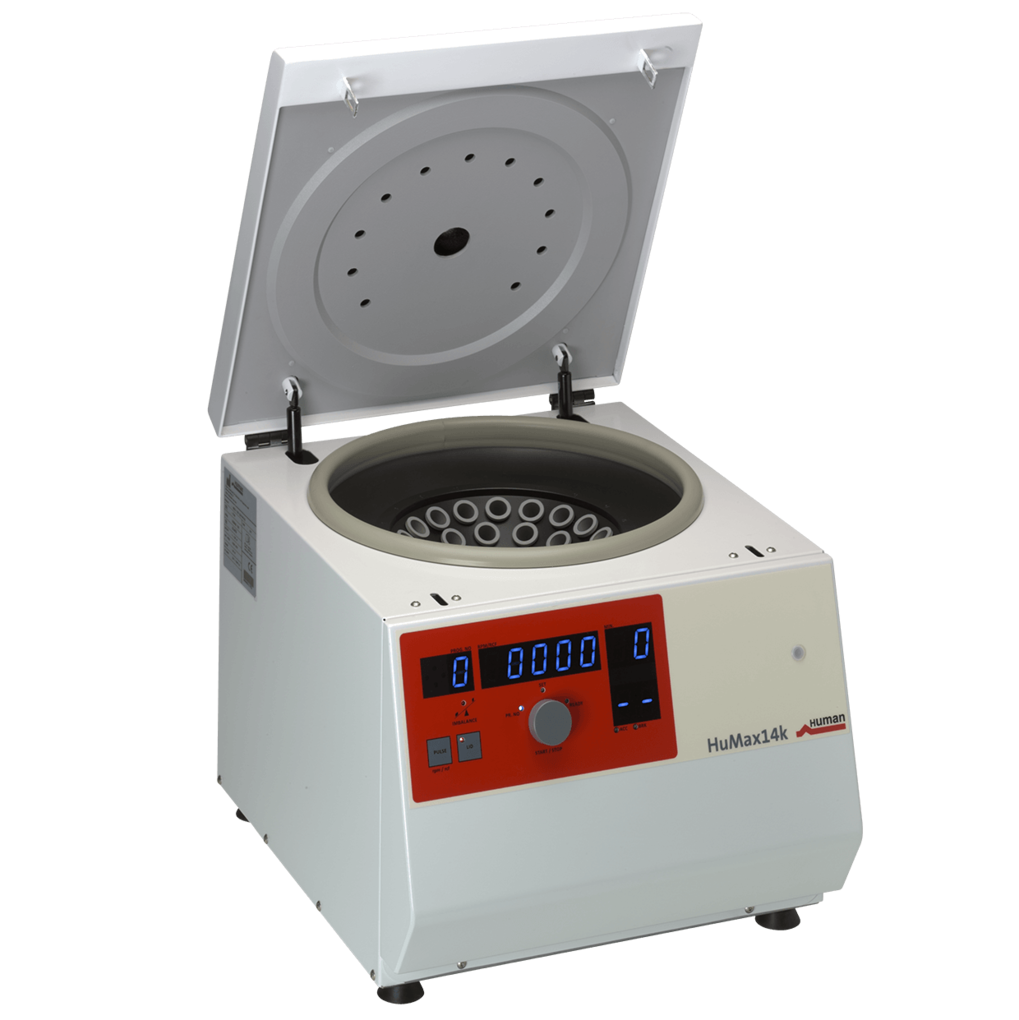

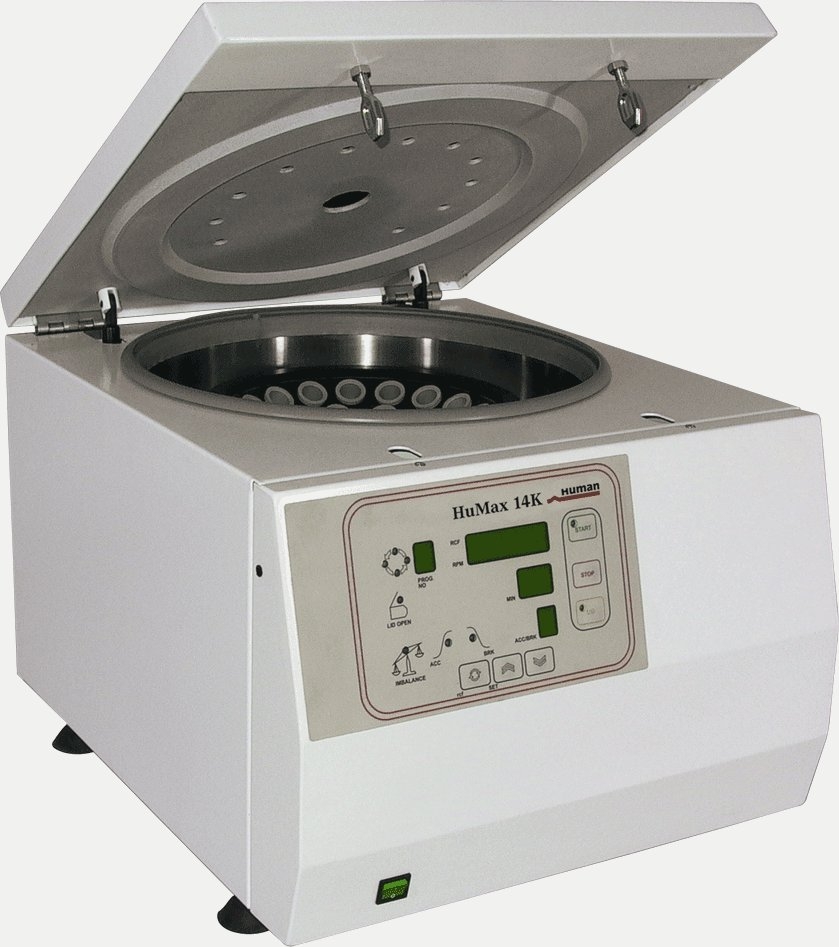

HuMax 14K(230 VAC)

Name: HuMax 14K(230 VAC)
Brand: HUMAN Diagnostics Worldwide
SKU: 17160
Availability: InStock

CoreLab DXLaboratory EquipmentInstrumentsCentrifuges

Price per unit:

XXX,XX €

Get a consultation

Multipurpose high-speed centrifuge

The HuMax 14K is a multipurpose high-speed centrifuge used in bigger sized labs for sample separation to separate components of heterogeneous mixtures based on their density, such as blood, cells, proteins, and nucleic acids. This is essential for various applications in biology, chemistry, and clinical diagnostics.

Adjustable speed

Up to 14,000 rpm by 18,405 x g RCF
Set the speed range by using the rotary knob

Capacity

3 different rotors types with different capacities are available: 30 x 15 ml, 24 x 1.5/2 ml, 4 x 200 ml

User interface

Time and speed will be displayed on the control panel

Timer

Timer: 1 min - 99 min + hold position

Rotor

Oprional 3 different rotor types: fix-angle Rotor 30 x 15 ml, 4.100 rpm, 3.007 x g REF 17162; Fix-angle Rotor 24 x 1.5 / 2ml, 14.000 rpm, 18.407 x g REF 17163 or Swing-out Rotor, 4 x 200 ml, 4.100 rpm, 3.045 x g REF 17161

Motor

Maintenance-free brushless motor

Locks

Lid Interlock

Imbalance detection

With imbalace detection in case of incorrectly loaded rotor

Chamber material

Stainless steel

Techspecs

Maximum speed

17161 rotor: 4,100 rpm
17162 rotor: 4,100 rpm
17163 rotor: 14,000 rpm

Maximum RCF

17161 rotor: 3,045 x g
17162 rotor: 3,007 x g
17163 rotor: 18,407 x g

Maximum capacity

17161 rotor: 4 x 200 ml
17162 rotor: 30 x 15 ml
17163 rotor: 24 x 1.5/2 ml

Speed set range

500 - 14,000 rpm

Speed set step

10 rpm

Display

Digital display for speed in RPM/RCF and time
LID LED, Start LED, Imbalance LED

Rotor

Available Rotors:
Swing-out: 17161
Fix-angle: 17162, 17163

Dimension (WxDxH)

46.5 x 55 x 40 cm

Imbalance detection

Yes

Accessories 7
