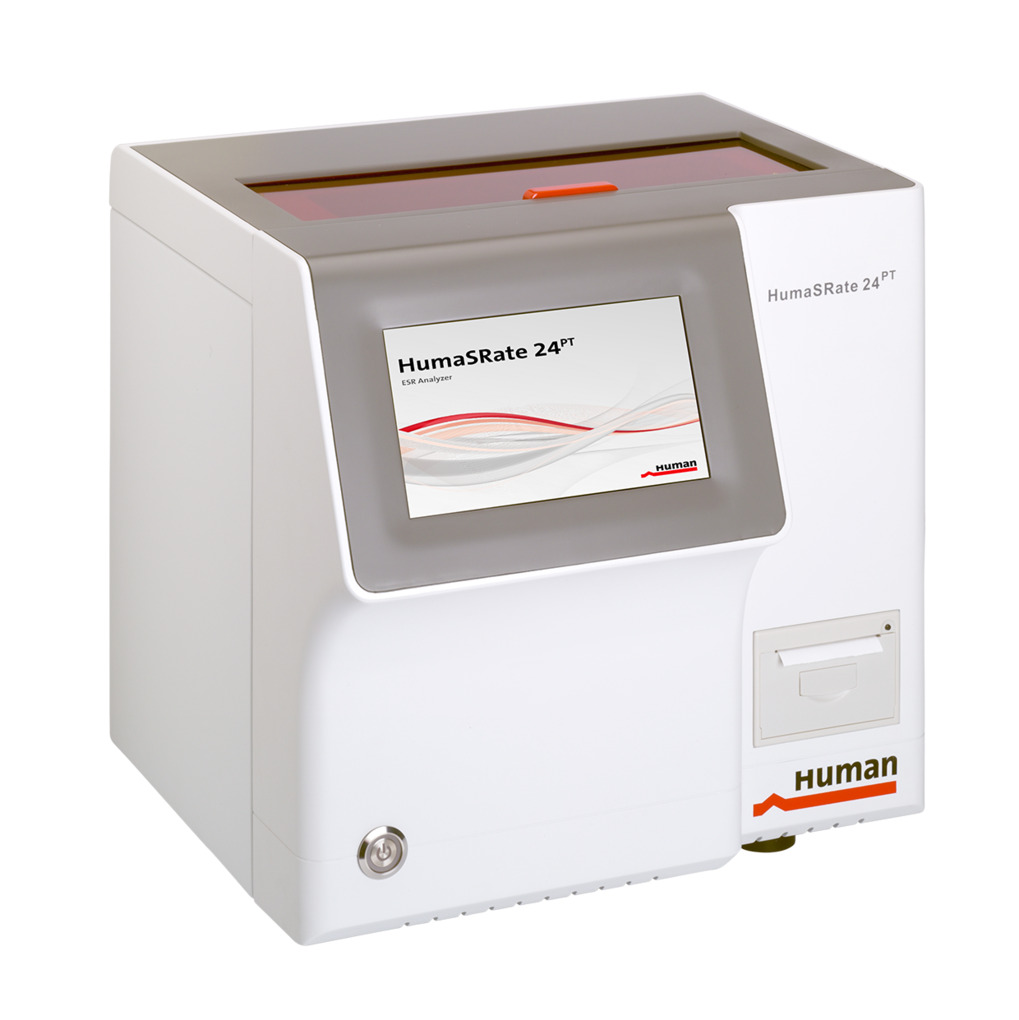

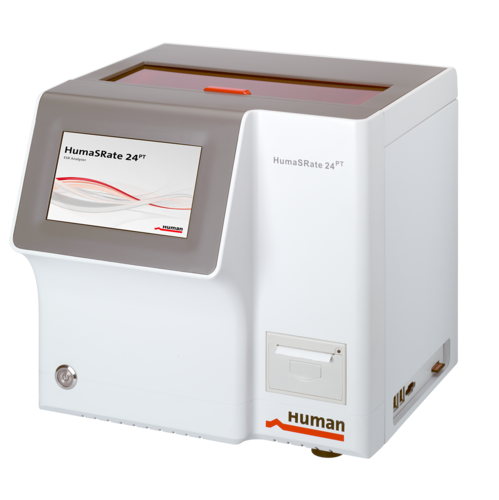

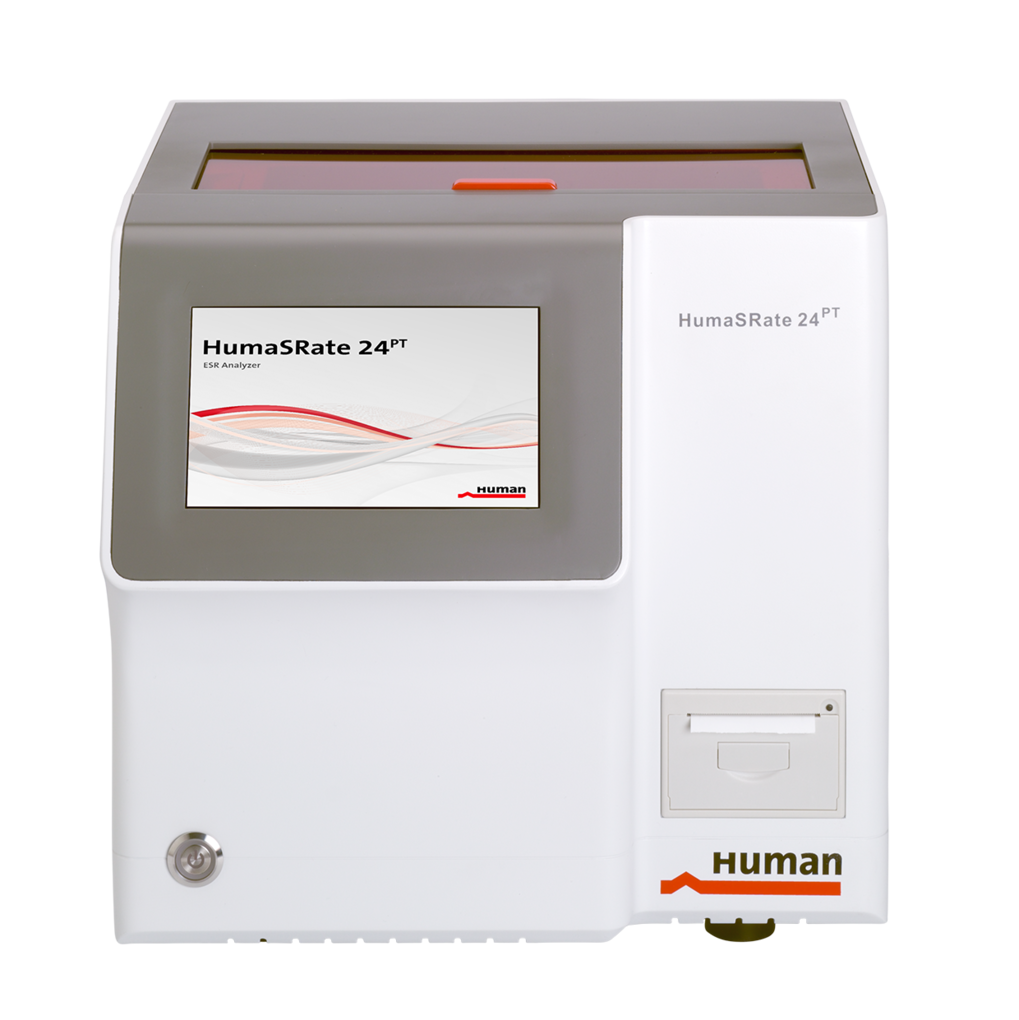

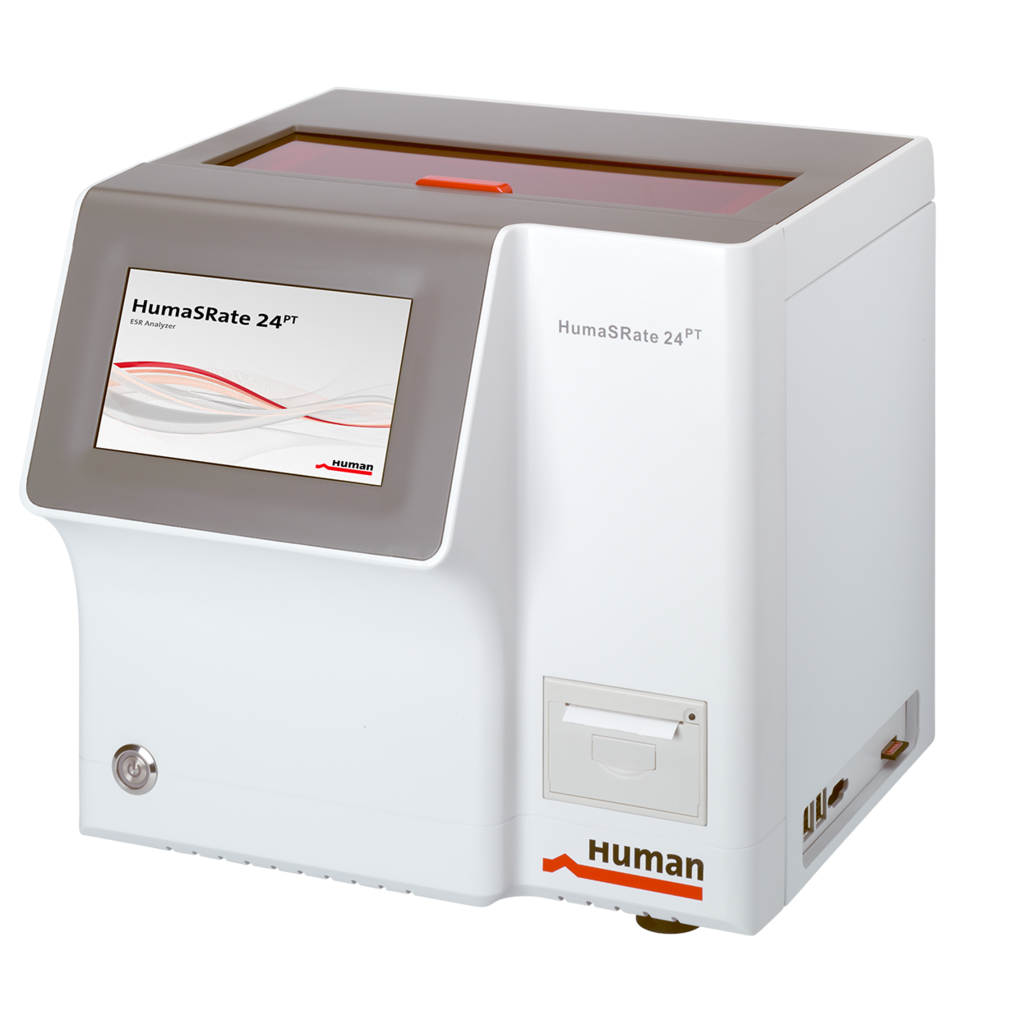

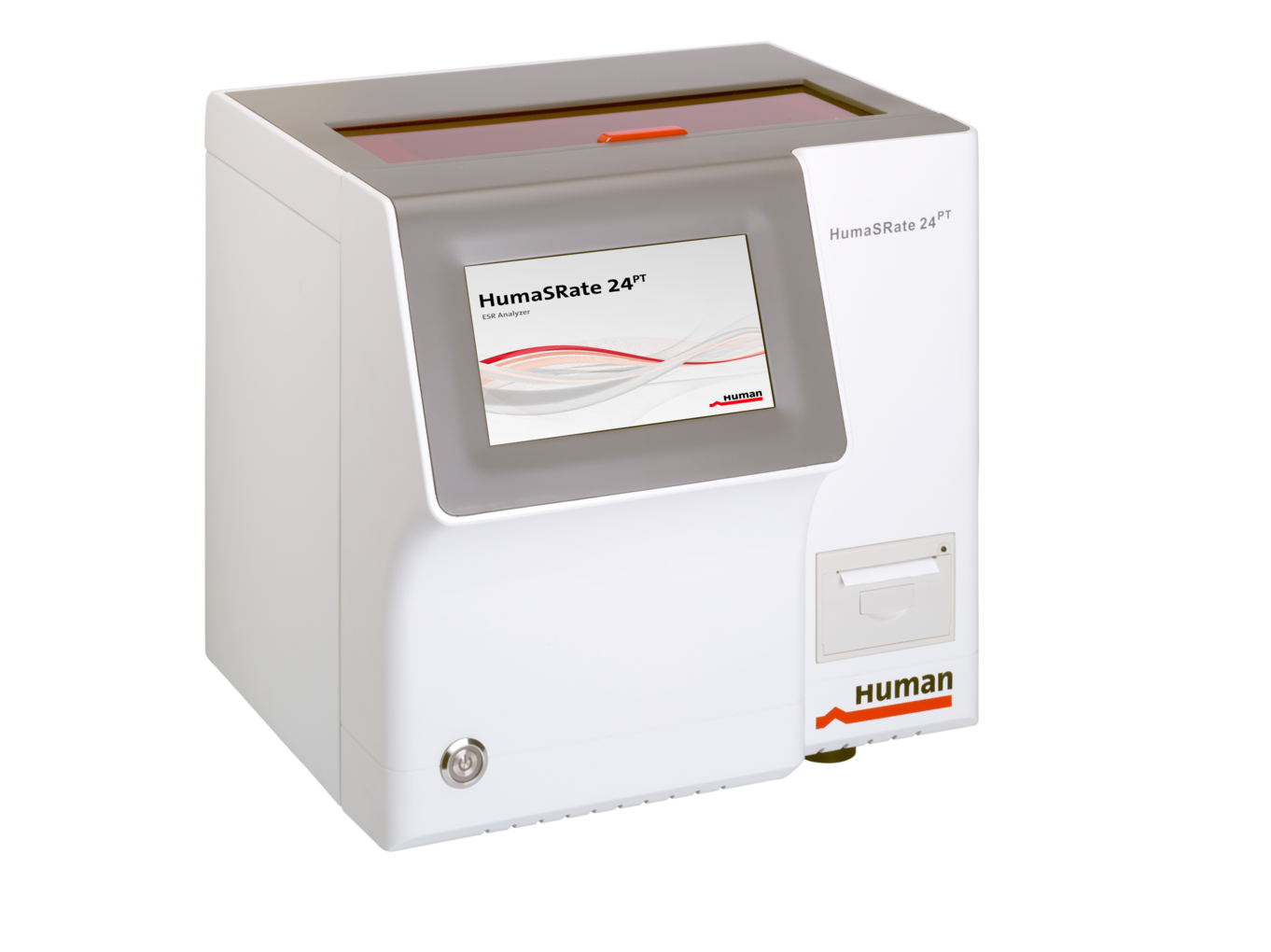

HumaSRate 24PT

Name: HumaSRate 24PT
Brand: HUMAN Diagnostics Worldwide
SKU: 15024
Availability: InStock

CoreLab DXHematologyInstrumentsESR

Price per unit:

XXX,XX €

Get a consultation

Sets new standards in ESR automation

ESR readings with primary tubes HUMAN offers an unique ESR system (erythrocyte sedimentation rate) for small to medium sized labs. The use of primary EDTA tubes for ESR reading is cost effective as no ESR tube is required and provides the flexibility to perform ESR testing at any time without the need for additional blood collection.

Throughput

Up to 24 samples/hour

EDTA Tubes

Get an ESR reading anytime from a CBC tube where EDTA is standard. Primary EDTA tubes instead of ESR tubes – convenient & cost-efficient

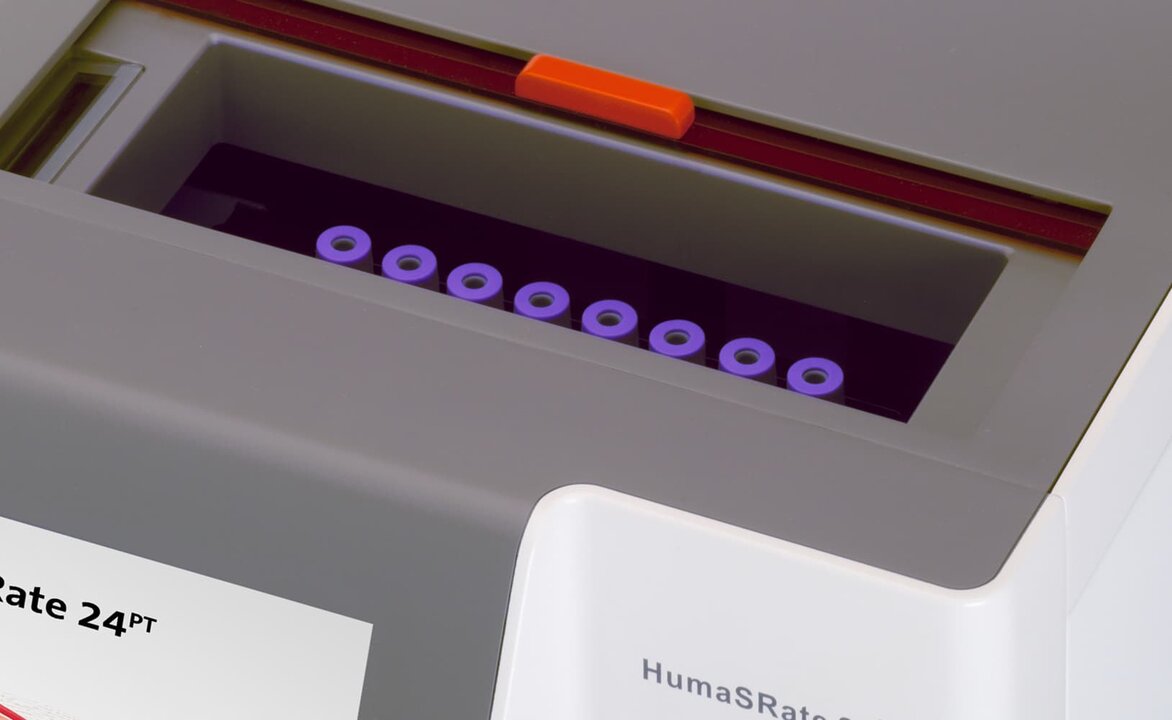

Channels: 8

with integrated mixer

Barcode reader

Integrated barcode reader to identify sample ID

Intuitive and powerful software

Offers an enhanced user experience, designed for intuitive touchscreen interaction

QC module

Levey-Jennings-Diagram

Data storage

Up to 5000 patient results including ID, patient data, temp, SED-curve

Printer

Integrated thermal printer

LIS

Easy integration into hospital management systems with HL7 standard

ESR Testing with EDTA Tubes

Sets new standards in efficiency and convenience

No special ESR tubes required
EDTA tubes – routine in hematology for complete blood count testing (CBC)
ESR is often requested together with CBC

Real sedimentation measurement – high accuracy and precision

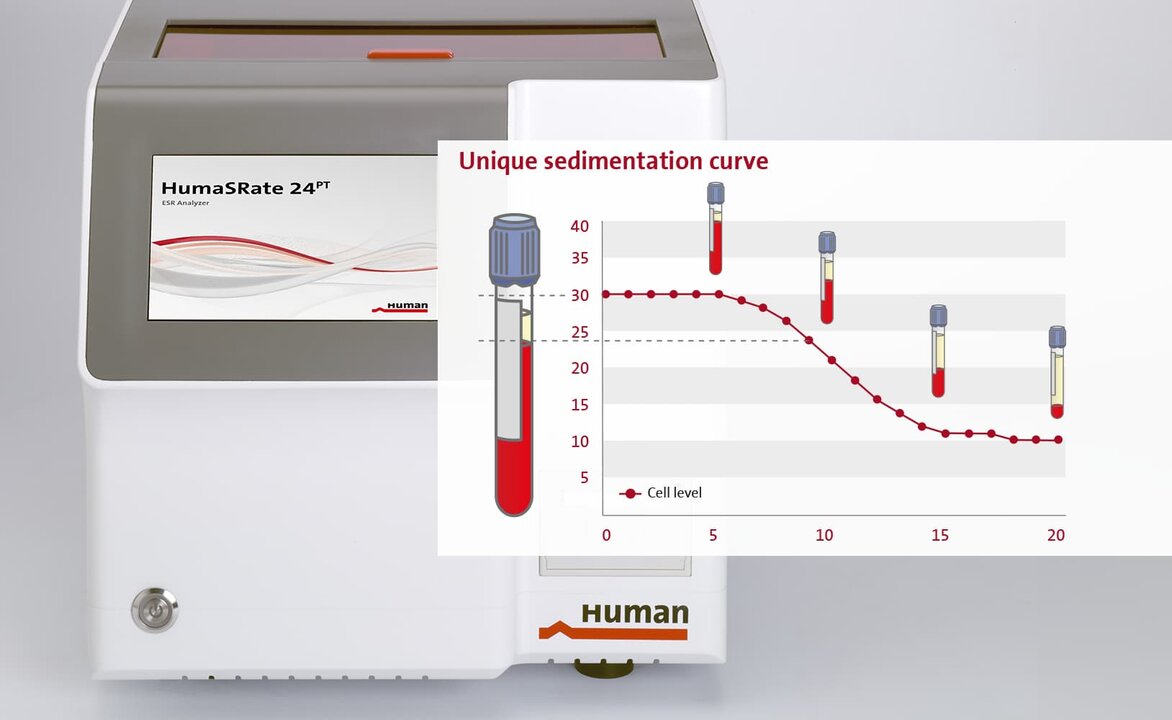

Unique sedimentation curve with continuous scan technology
Excellent correlation to Westergren by recording of all three phases of sedimentation

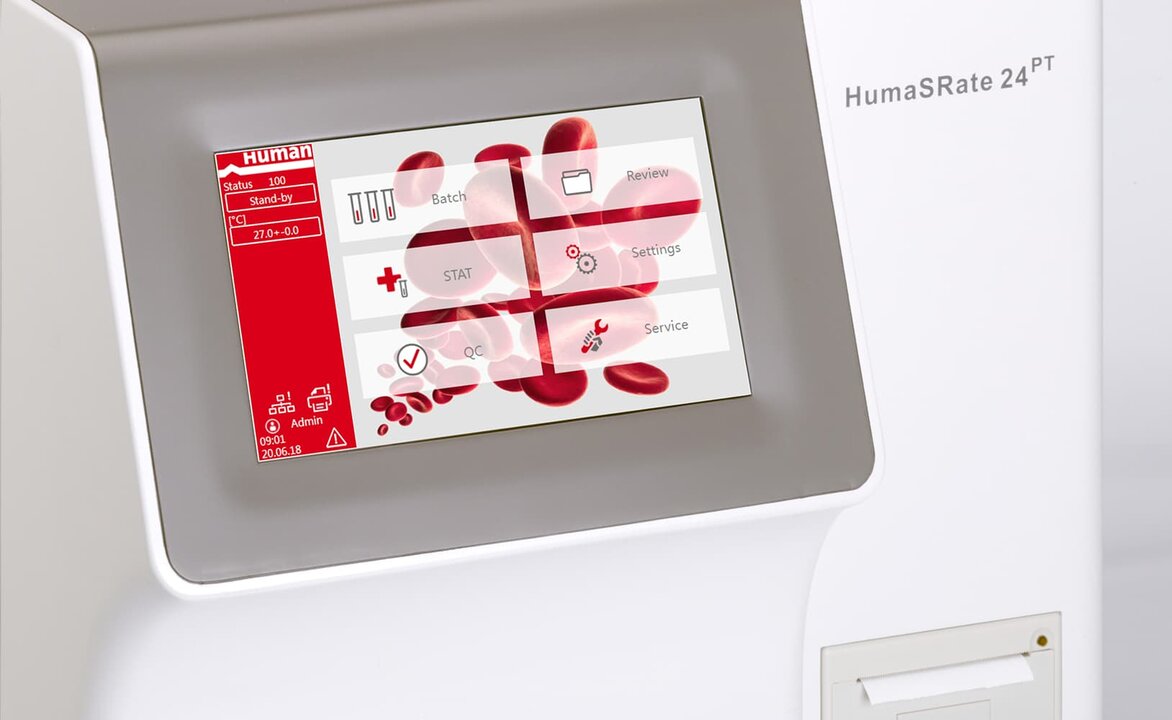

Intuitive and powerful software

Intuitive menu guidance with clear structured screens
Provides easy access to information through a searchable results database
QC software module – unique in sedimentation

Techspecs

Analyzer type

Erythrocyte sedimentation rate analyzer

Sample

Primary EDTA tubes, no ESR tubes necessary,
whole blood

Throughput (max.)

24 samples / hour

Parameters

ESR, temp. correted ESR, Katz-Index, Sedimentation Curve

Barcode reader

Integrated

Operation modes

Batch loading with automated mixing
STAT samples

Loading capacity

8 tubes

Languages available

English, Chinese, Spanish, French

LIS

LIS bi-directional, HL7 standard

Physical dimensions (W x D x H)

30 x 32 x 35.2 cm
Weight: 16 kg

Environmental

Operating: 18...30°C, relative humidity : 20-85%, non condensing
Storage: 0...40°C, relative humidity : 20-85%, non condensing
