HumaScope FluoLED(2 channel)

Name: HumaScope FluoLED(2 channel)
Brand: HUMAN Diagnostics Worldwide
SKU: 14800
Availability: InStock

CoreLab DXMicroscopesInstrumentsHumaScope Line

Price per unit:

XXX,XX €

Get a consultation

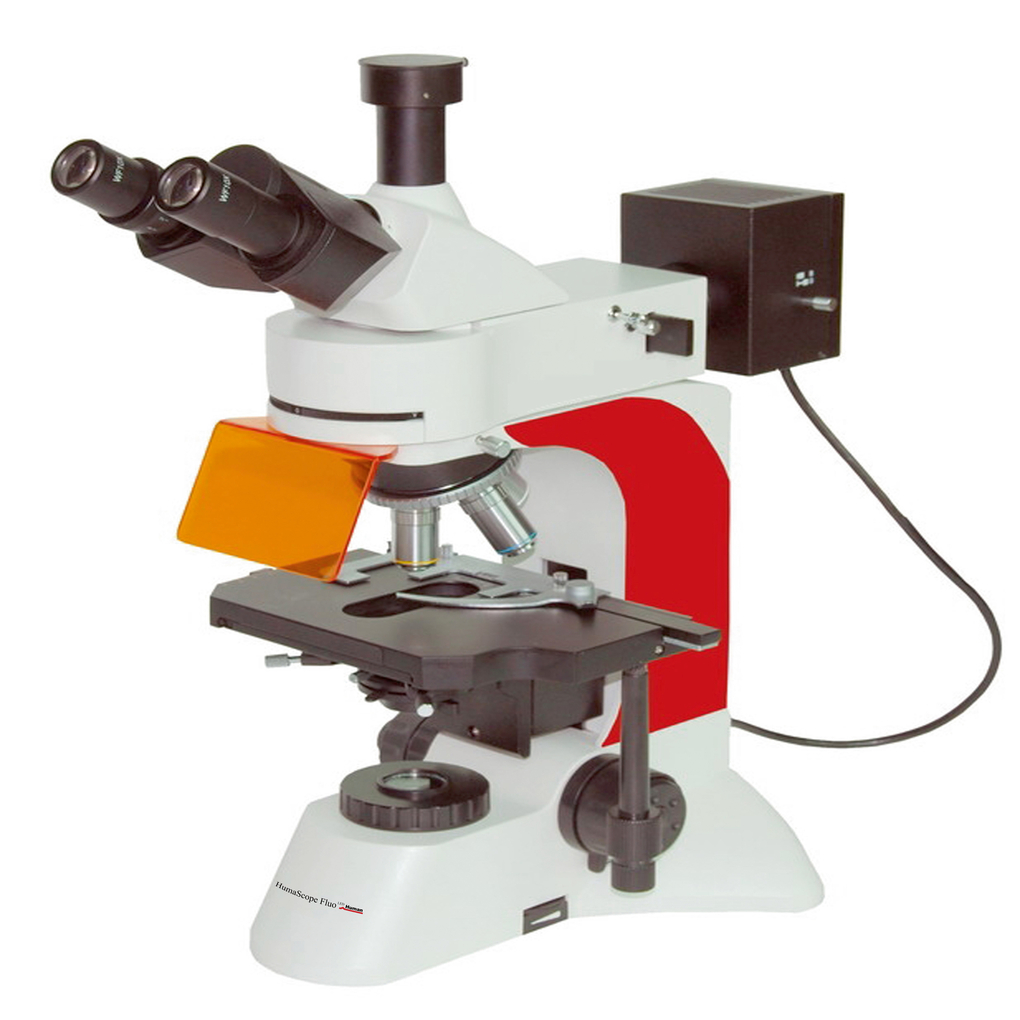

LED fluorescence microscope with trinocular head 2-channel LED fluorescence (blue, green)

The HumaScope FluoLED combines fluorescence capabilities with LED efficiency for vibrant imaging in life sciences. Compact and user-friendly, it supports detailed analysis in research and education, offering reliable performance with minimal maintenance.

LED illumination

Koehler illumination, transmitted light white LED with
adjustable brightness and Fluorescence illumination

Head

The compensation-free trinocular head, can be rotated through 360°, have a 30° tilt for ergonomic vision and a interpupillary distance 53 – 75 mm

Fluorescence channels

Blue: exciting 420 – 485 nm, 515 nm
Green: exciting 460 – 550 nm, 590 nm

Eyepiece

Widefield, 10x / 22 mm
Left-sided diopter adjustment of ±5

Objectives

Infinity-plan achromatic (antifungal coated)
4 x / 10 x / 40 x / 100 x oil
(40 x / 100 x = spring-loaded)

Revolver

5-positions reverse

Stage

Size: 210 x 140 mm
x / y movement: 75 x 50 mm
Features the capability to hold two slides simultaneously and is protected by an anti-scratch coating.

Focus system

Coaxial course / fine focus gear transmission
with tension adjustable knob and up limit stopper system 4 mm movement per full turn, 2 μm increased
