Throughput
- HbA1c result in 2.2 minutes
- Up to 20 samples per hour with 10-sample autoloader
Instruments
Solution
Disease

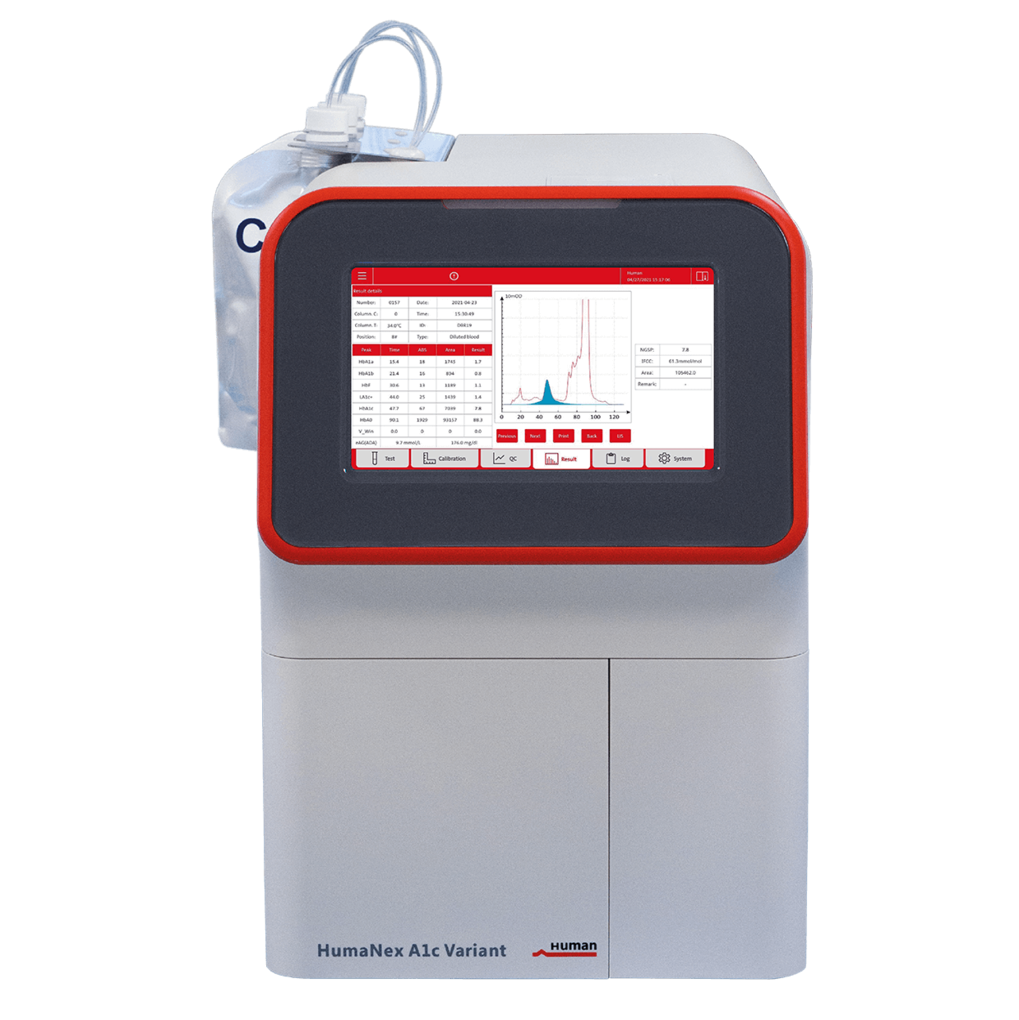

HumaNex A1c Variant
CoreLab DXHPLCInstrumentsAnalyzers
Price per unit:
XXX,XX €
Limited Stock
HPLC system for small and medium-scale measurement of glycated hemoglobin HbA1c
Technology
HPLC technology - the gold standard of HbA1c testing
Variant Detection
Detect common Hb variants (HbE, HbS, HbC, HbD)
Samples
Sample volume: 5 μl diluent mode / 1.5 ml whole blood
Primary tube sampling with cap piercing
Primary tube sampling with cap piercing
Barcode Reader
Easy sample identification by barcode
Certified by NGSP and IFCC
Result reported in NGSP, IFCC and eAG (ADA) units
Intuitive and powerful software
Designed for intuitive touchscreen interaction
Printer
Built-in thermal printer for immediate result documentation
Data storage
Equipped with memory for up to 4,000 patient results, including chromatograms

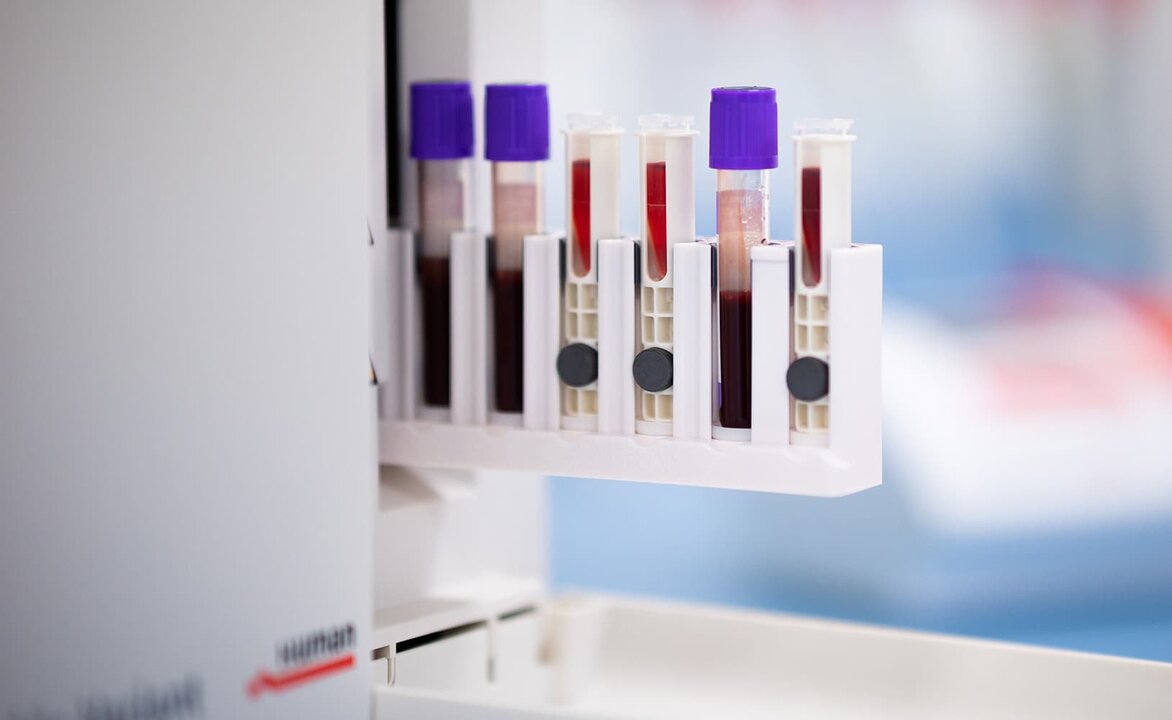

Simplicity – designed to assist you
- Fully automated with an onboard capacity of 10 samples
- Primary tube sampling with cap piercing
- Handheld barcode scanner

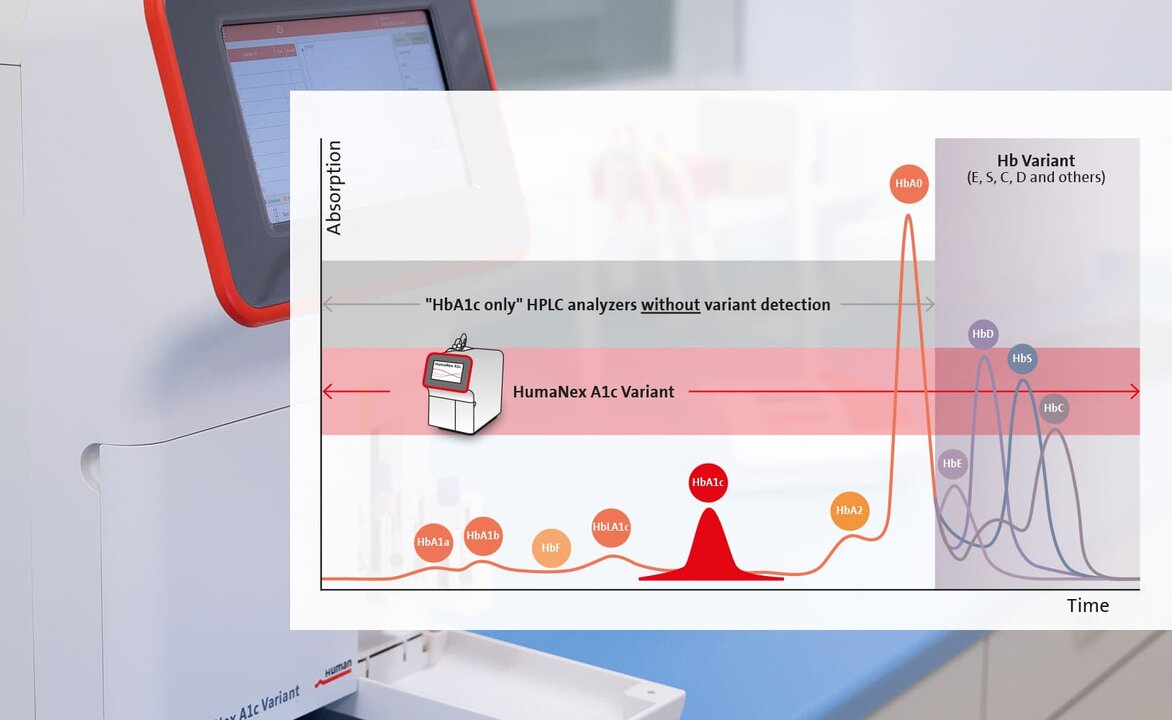

Detect variants, provide more insights
HumaNex A1c Variant will give you the details that enable you to provide the full picture to your physicians. Detected variants are visible on the chromatogram and taken into account when calculating the HbA1c result to reduce interferences. While HbE, HbD, HbS and HbC variants are the most common Hb variants, there are 1000s more rare pathological Hb variants. Knowing
of the existence of these variants is important for many physicians.
of the existence of these variants is important for many physicians.

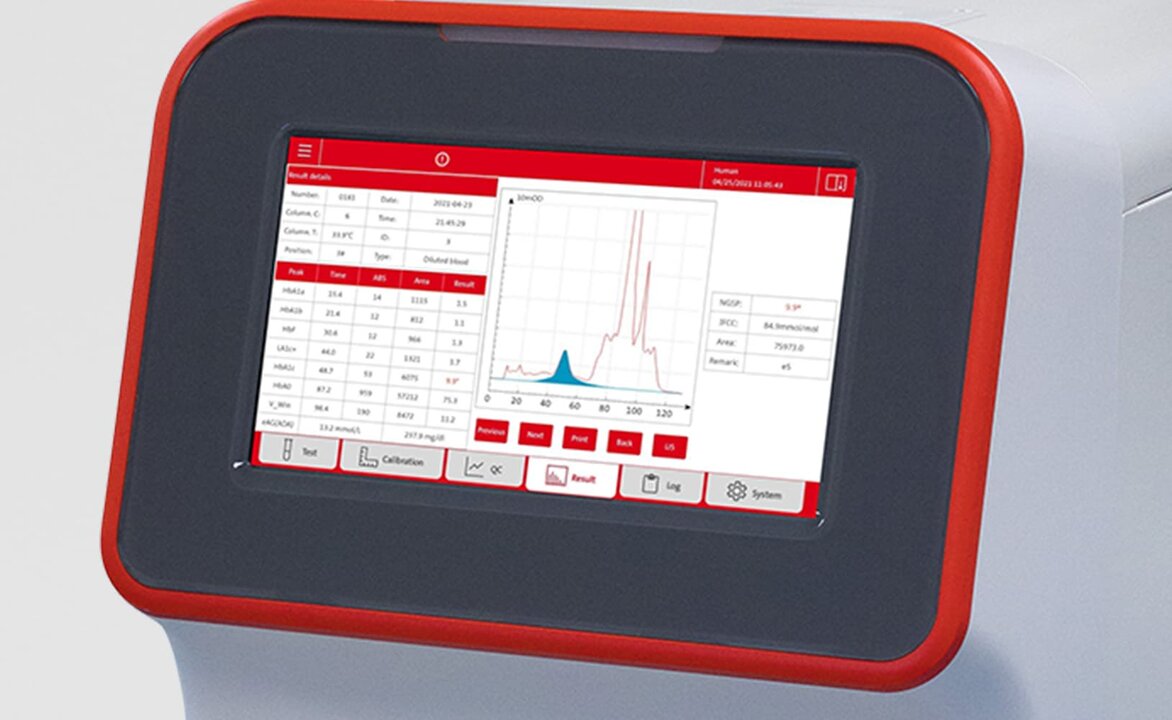

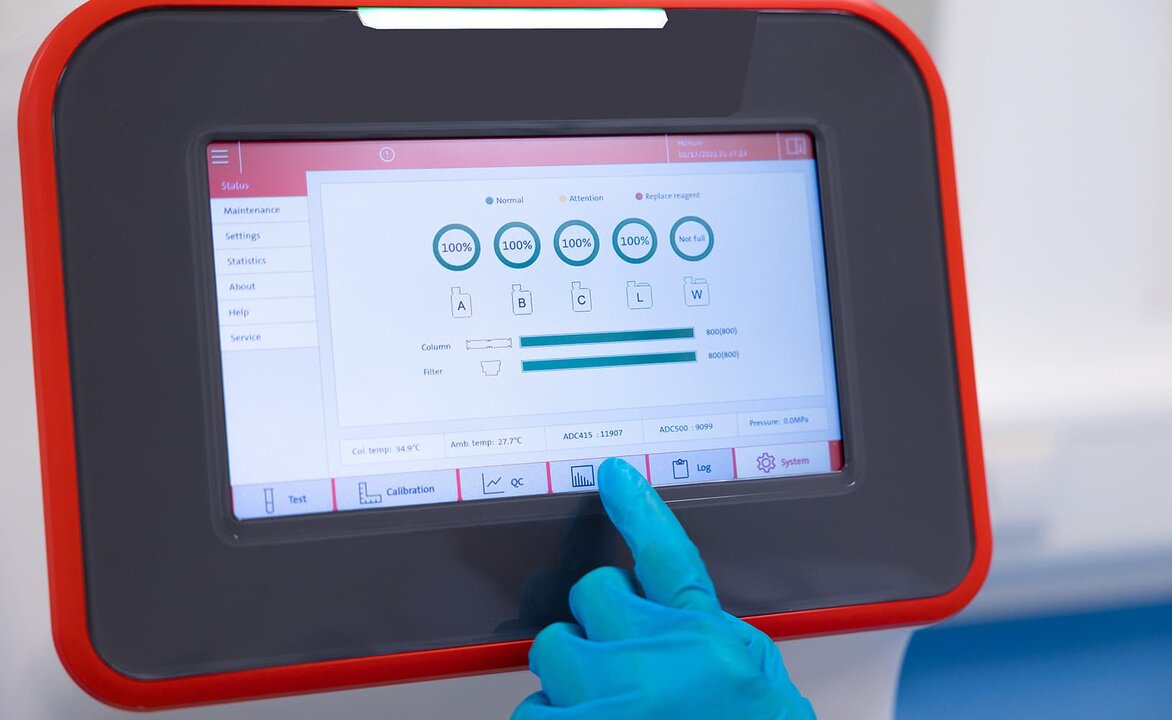

Intuitive and powerful software
- Offers an enhanced user experience,designed for intuitive touchscreen interaction
- Fast and easy access to all routine functions
- Programmable automatic start up routine
- Searchable results database with chromatograms
Reliable – precision you can trust
- HPLC technology - the gold standard of HbA1c testing
- The coefficient of variation (CV) within the test series is 1.2 % and thus meets the strict standards of CLSI EP05-A3 under the 5x5 model
- Certified by NGSP and IFCC
Techspecs
Analyzer type
Ion exchange HPLC analyzer
Reagent system
Closed
Throughput (max.)
Up to 20 tests per hour
Sample type
EDTA whole blood or diluted blood
Sampling volume
5 μl (whole blood)
1.5 ml (diluted blood)
1.5 ml (diluted blood)
Measuring range
3 to 18% NGSP
Barcode reader
External barcode reader from Samples
Printer
Built-in thermal printer or external printers via USB
Languages available
English, Spanish
Physical dimensions (W x D x H)
- Instrument without any components: 56 x 38 x 61 cm
- Space required for routine use: 130 x 70 x 100 cm
- Weight: 38 kg
Environmental
- Operating: temperature 10...30°C, humidity ≤ 80 %
- Storage / transport: temperature 0...55°C, humidity ≤ 93 %
- Altitude: up to 4,000 m
