Measured parameters: Na+, K+, Cl-
Direct ISE for Na+ (sodium), K+ (potassium)
Cl- (chloride)
Instruments
Solution
Disease

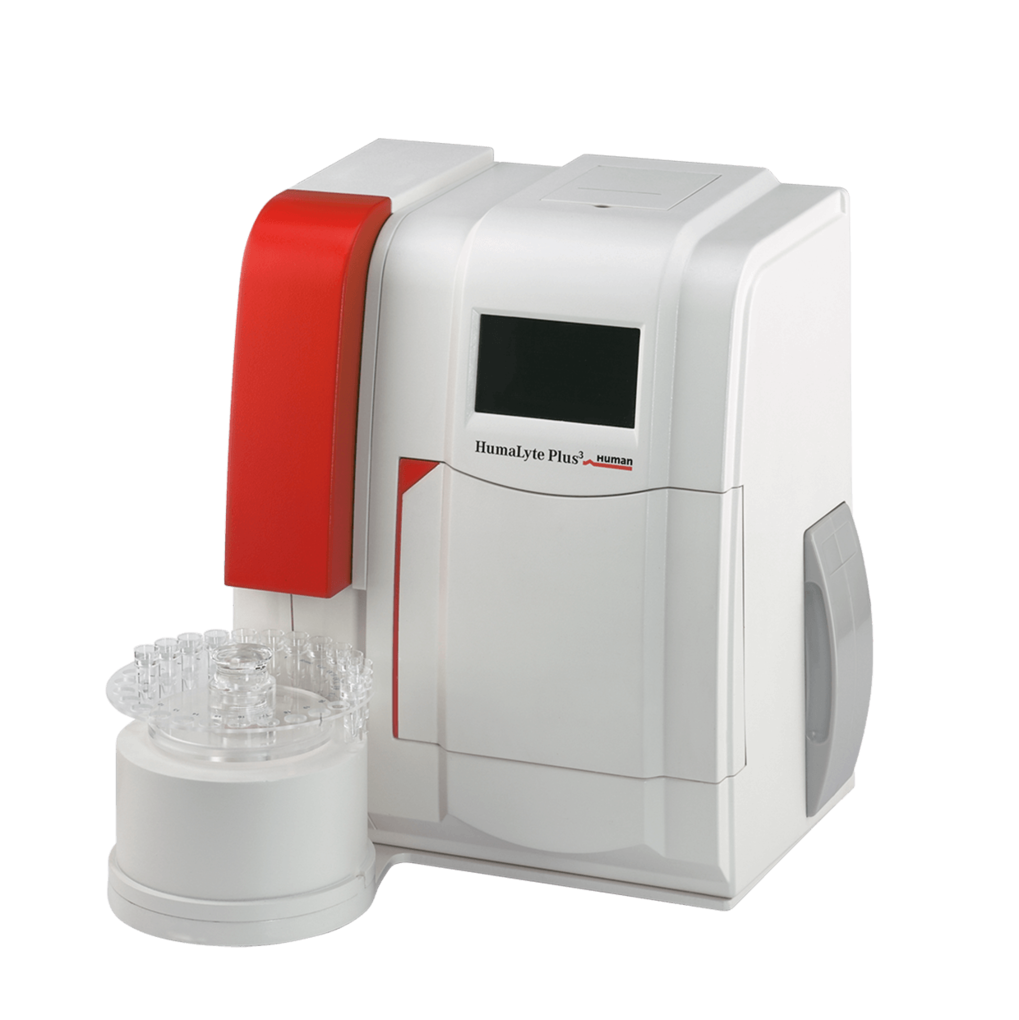

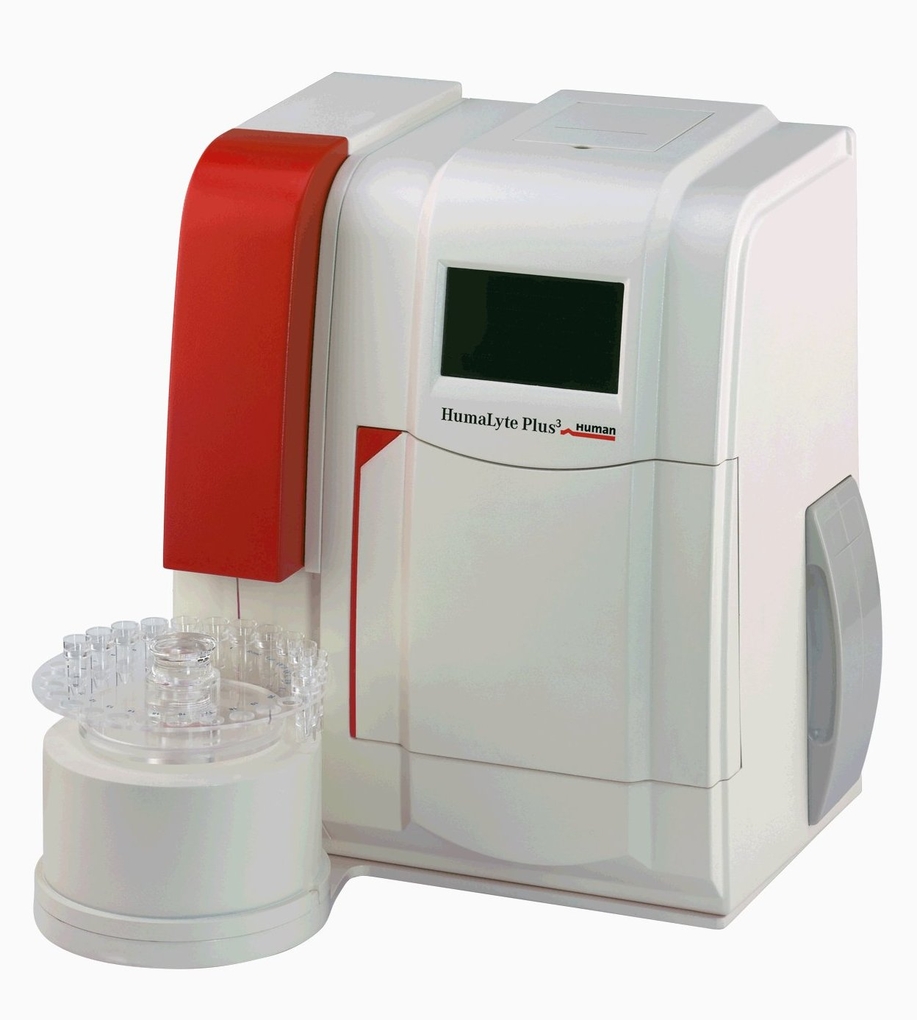

HumaLyte Plus 3
CoreLab DXClinical ChemistryInstrumentsHumaLyte ISE Systems
Price per unit:
XXX,XX €
Direct ISE-Systems
Throughput: Up to 60 samples/h
Up to 60 samples / hour,
60 sec per sample
Autosampler
Optional autosampler for 20 samples and STAT offering walk-away capability
Sample types
Serum, whole blood (heparin), plasma (heparin) or diluted urine
Printer
Built-in thermal printer
System reagent pack
A single Reagent Pack is required for all parameters, which includes all necessary reagents and a waste container. This ensures easy handling, eliminates the possibility of mixing up reagents, and supports auto-calibration.
Electrodes
Low operation costs, electrodes can be refilled during usage time
Data storage
Sample results for 200 patients with patient ID, QC results

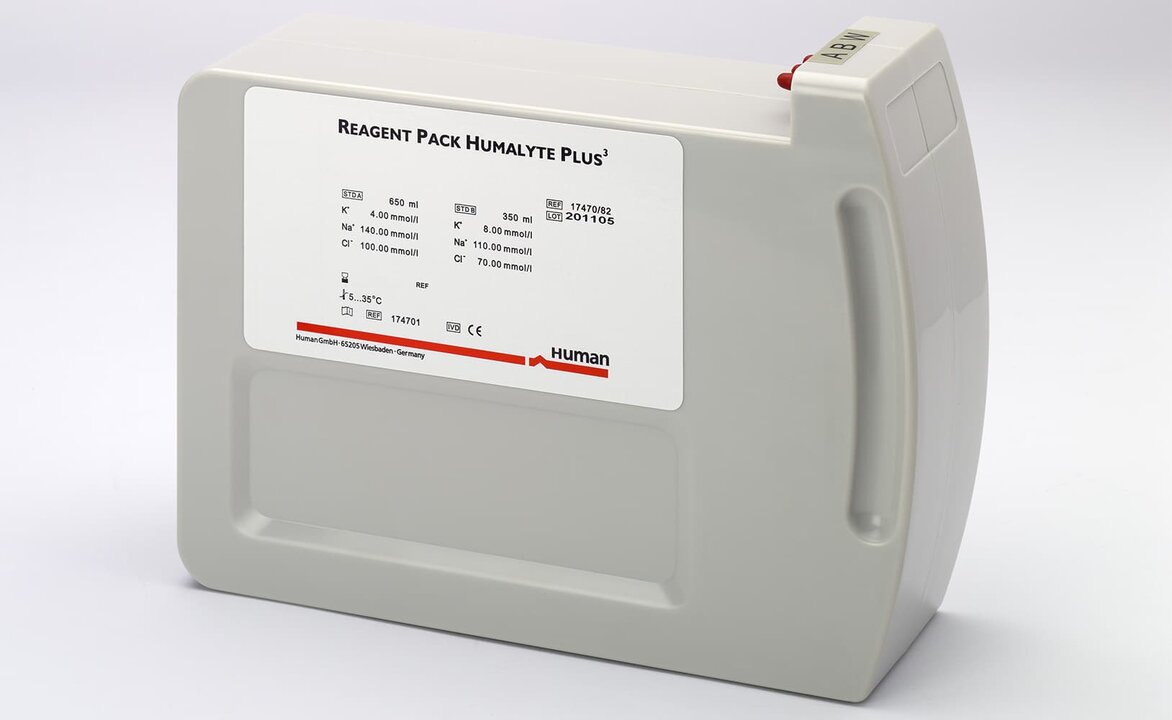

Reagent Pack with snap-in replacement technology
The snap-in replacement technology of its self-contained reagent pack with enclosed waste cartridge ensures reduced exposure to biohazards.
Techspecs
Analyzer type
Stand-alone ISE electrolyte analyzer
Principle
Direct measurement by Ion Selective Electrode (ISE)
Measured parameters:
Na+ (sodium)
K+ (potassium)
Cl- (chloride)
K+ (potassium)
Cl- (chloride)
Sample type:
Serum, Plasma and Whole blood (heparin >10 U/ml),
Diluted urine
Diluted urine
Sampling
Manually through aspiration needle,
optional Autosampler (with STAT)
optional Autosampler (with STAT)
Operation Modes:
Standard mode: Daily use operation;
QC mode: QC measurement for statistical interpretation (two levels)
QC mode: QC measurement for statistical interpretation (two levels)
Throughput:
Up to 60 samples / hour
Reagent
Closed system, only usable with HUMAN reagent pack.
Only one Reagent Pack necessary for all parameters
Only one Reagent Pack necessary for all parameters
Calibration
Automatic 2-point calibration every 4 hours or on demand. 1-point calibration with each sample for temperature and drift compensation.
Physical dimensions (W x D x H)
Instrument without any components: 38 x 35 x 44 cm
Space required for routine use: 63 x 61 x 52 cm
Weight: 7.8 kg
Space required for routine use: 63 x 61 x 52 cm
Weight: 7.8 kg
Environmental
Operating temperature: 15 – 32°C
Relative humidity: ≤ 85 %, non-condensing
Relative humidity: ≤ 85 %, non-condensing
