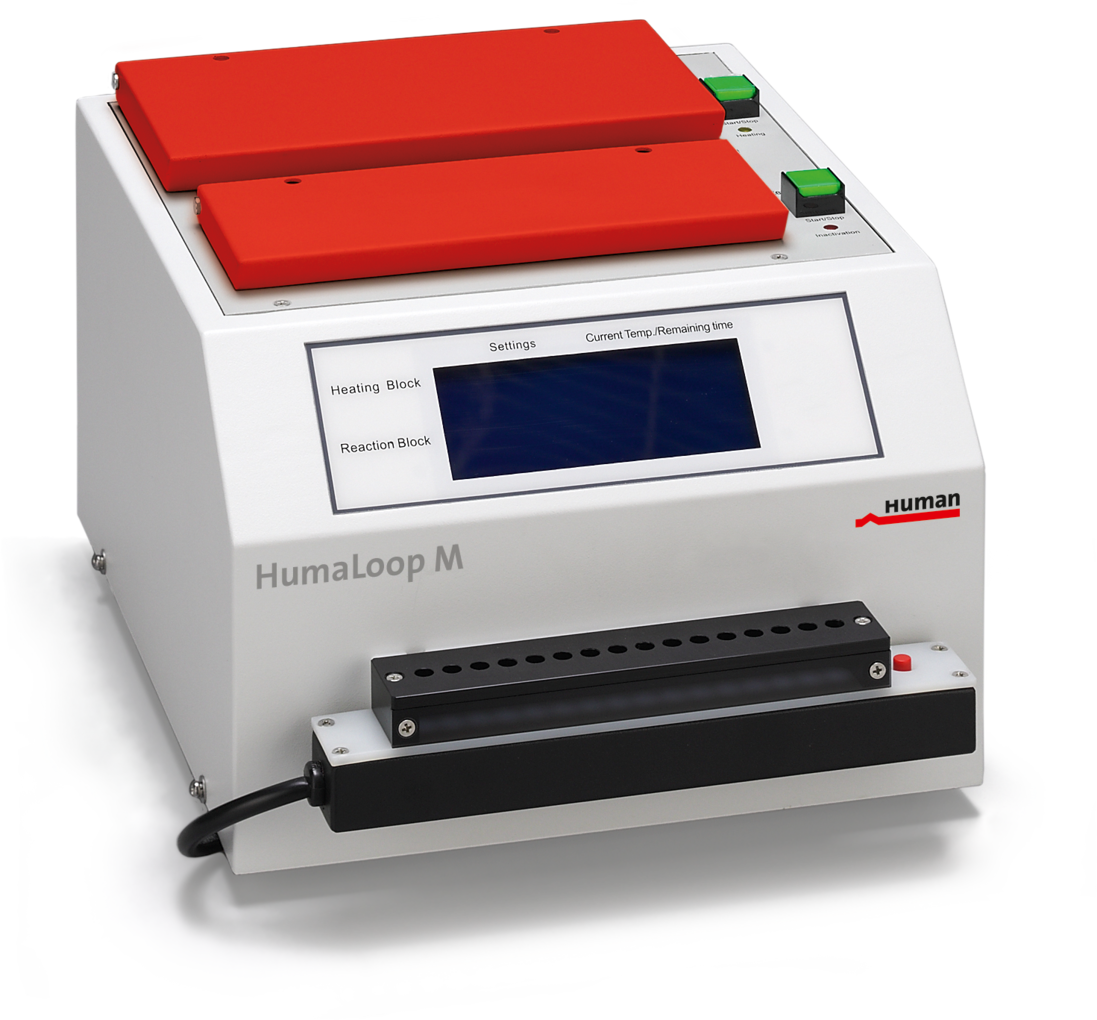

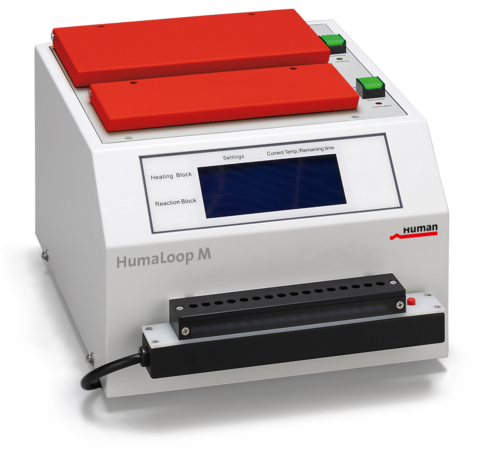

HumaLoop M
Molecular DXLAMPInstrumentsIsothermal Amplification
Price per unit:
XXX,XX €
Limited Stock
Spotting malaria reliably with Malaria-LAMP Track down infections easily with highly sensitive Malaria-LAMP even in low-prevalent settings
Time to result
Results in 1 – 2 hours depending on sample number

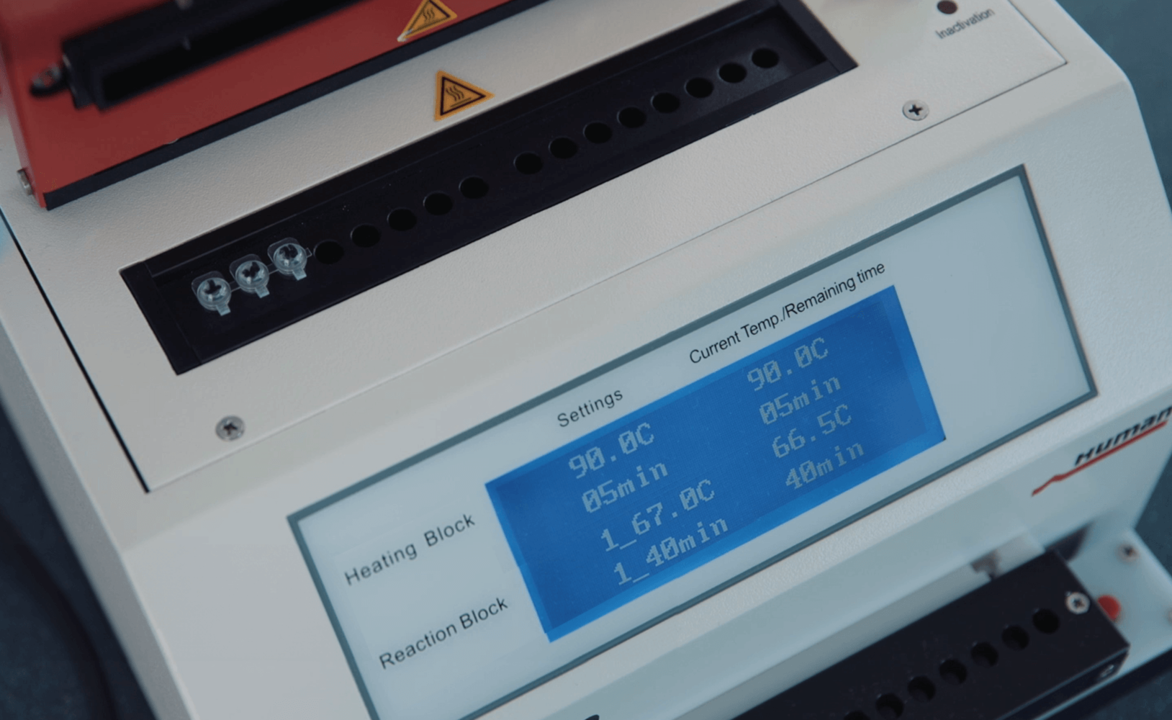

Incubation
Preinstalled incubation times and temperatures for LoopampTM assays (except LoopampTM MTBC)
Processing
Sample preparation, amplification and detection on a single instrument
Result interpretation
Visual reading of fluorescence signals
Portable battery system
LAMP devices can be operated up to three runs
Technology
Loop-mediated isothermal amplification (LAMP)
Easy-to-use molecular Malaria detection for primary and peripheral laboratories
HumaLoop M has been specifically designed as a unified platform for sample preparation, amplification and effortless visual interpretation of malaria results. It enables sensitive and reliable detection of tropical pathogens like Malaria Pan, Malaria Pf and Malaria Pv.
Spotting Malaria reliably even in low-prevalent settings
High sensitivity and specificity with a detection limit of 1 parasite / μl*
Differentiated diagnosis between
Plasmodium pan species, Plasmodium falciparum and Plasmodium vivax
Recognized method: listed in the WHO policy brief on malaria diagnostic in low-transmission settings
Differentiated diagnosis between
Plasmodium pan species, Plasmodium falciparum and Plasmodium vivax
Recognized method: listed in the WHO policy brief on malaria diagnostic in low-transmission settings

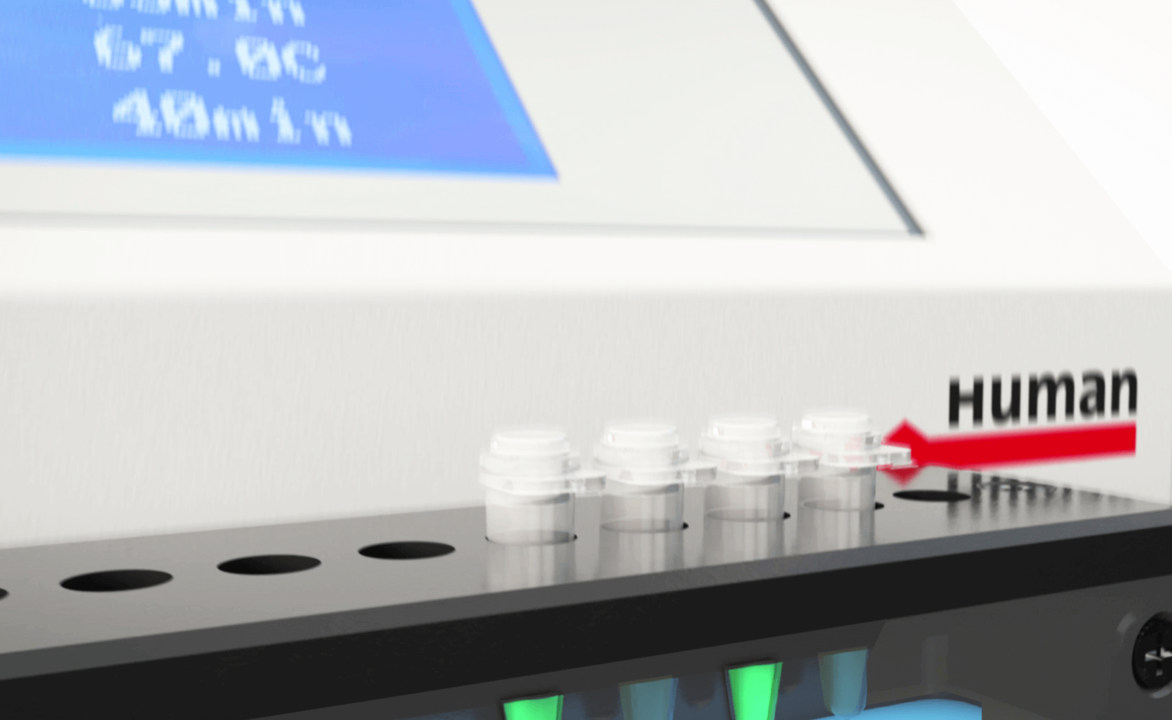

Convenient and easy result reading
Insert the tubes into the detection unit and turn the UV light on. Positive results light green, negative results show no fluorescence.

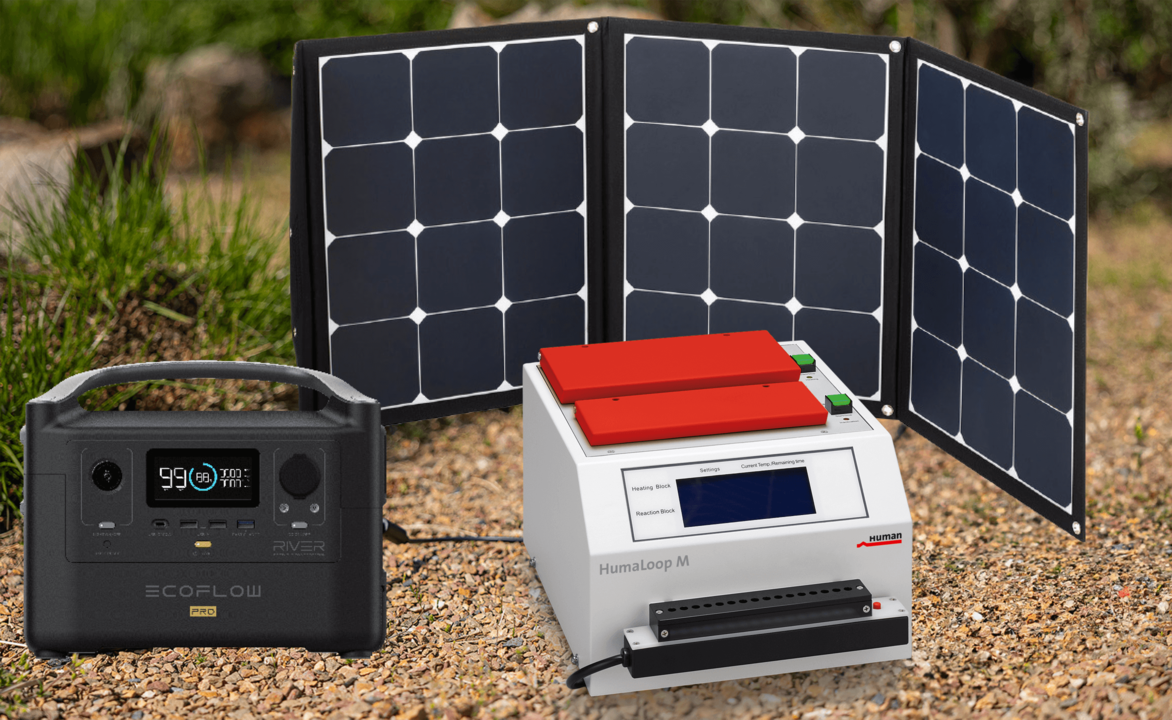

Perfect for use in remote areas
with independent power solution by solar panel
and battery system
and battery system

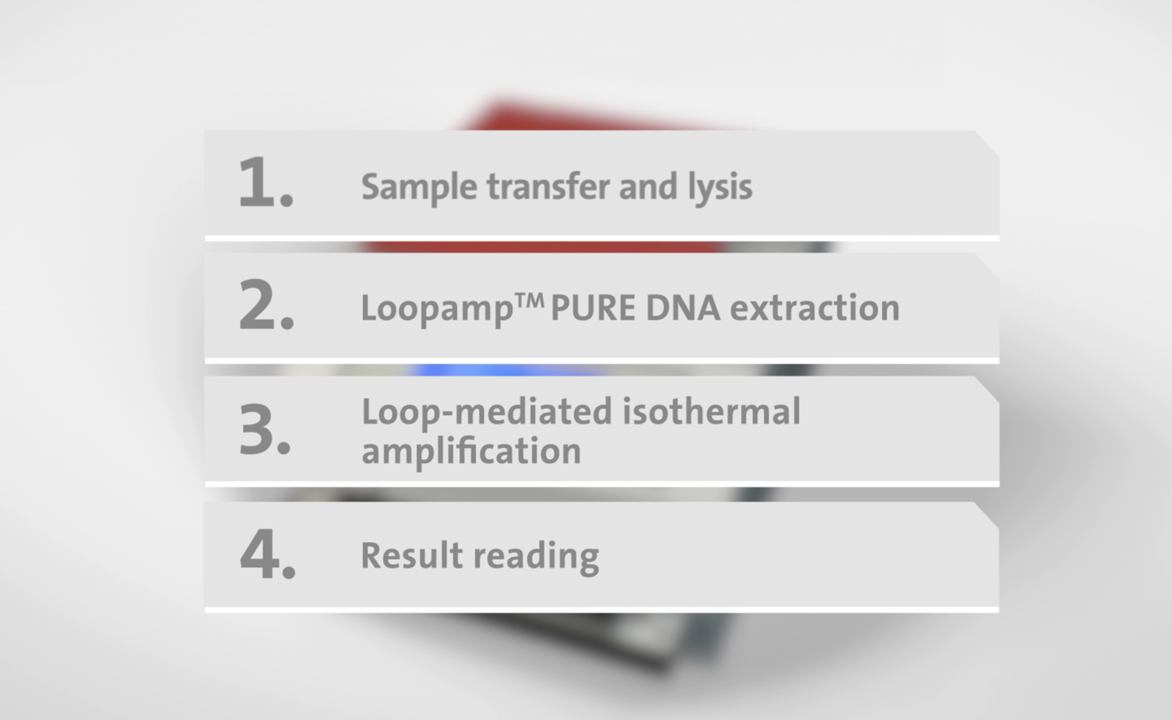

Malaria-LAMP is robust and easy to perform
Advanced molecular detection in 4 easy steps. Reagent storage and shipment at room temperature as well as the excellent test performance make molecular pathogen testing available in rural areas with limited settings.
Techspecs
Analyzer type
Loopamp™ incubator with fluorescence detection unit
Reagent system
Closed
Tests per run
16
Measuring mode
Fluorescence detection
Test method
Loop-mediated isothermal amplification
# of programmable tests
1
Sample type
Whole blood
Test positions
16
Wavelengths
450~500 nm (465~470 nm)
Physical dimensions (W x D x H)
Instrument: 25 x 30.6 x 18.2 cm
Weight: 9.5 kg
Weight: 9.5 kg
Environmental
Operating temperature 5…40°C, relative humidity 30…80 % (non condensing)
Transport temperature -5…40°C, relative humidity 20…85% (non condensing)
Altitude Up to 3,800 m
Transport temperature -5…40°C, relative humidity 20…85% (non condensing)
Altitude Up to 3,800 m
