HumaFIA

CoreLab DXFIAInstrumentsHumaFIA System

    Price per unit:

    XXX,XX € asterisk icon

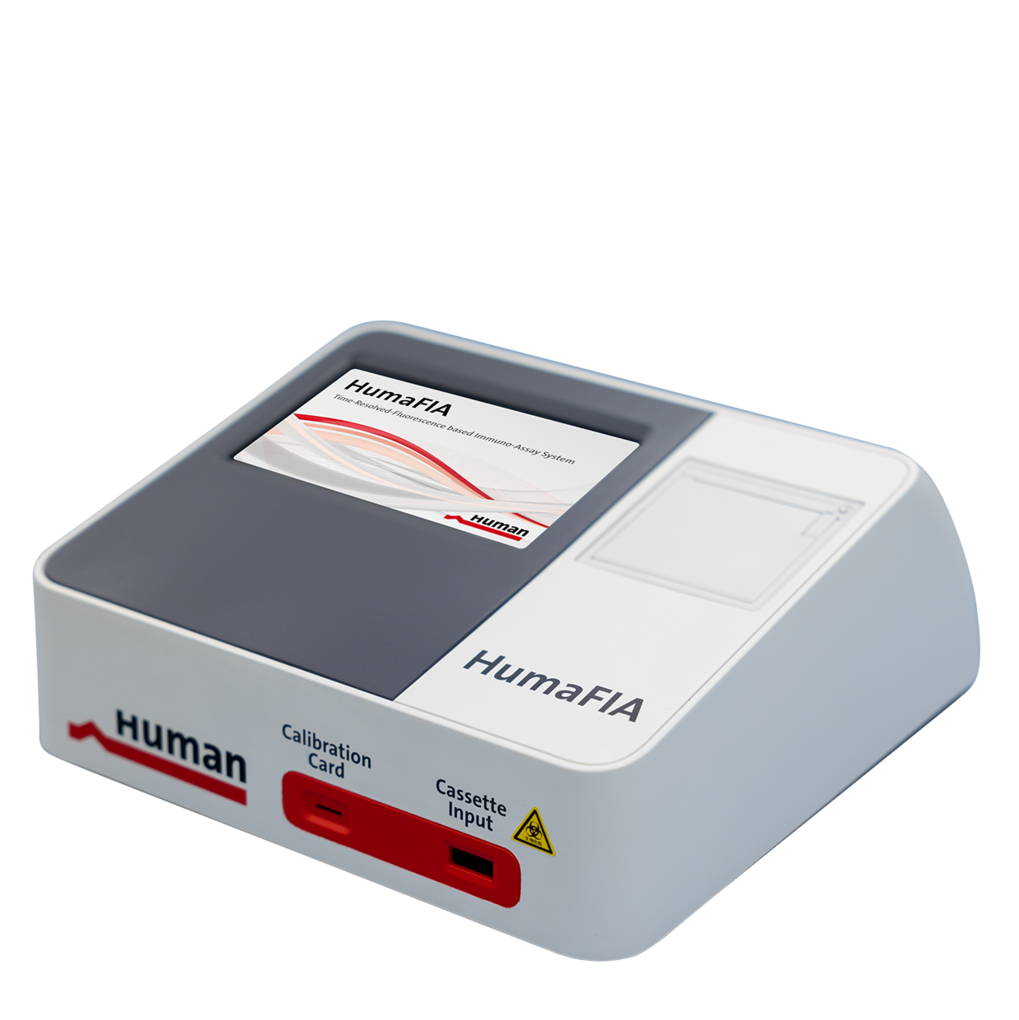

    Semi-automated immunoassay system for accurate results on-the-spot

    The HumaFIA single-cassette analyzer provides accurate readings wherever a quick result is needed: in emergency rooms, hospitals, doctors‘ offi ces, pediatric clinics, public health departments or laboratories. It is a small semi-automated platform for a large number of parameters. Ease of use and quality are built into this analyzer. Suppression of background fluorescence through time-resolved detection enables sensitive testing. Built-in checks for incubation temperature and time, as well as sample type-specific calibration curves, ensure consistently high-quality results.
    feature icon

    Throughput

    Workflow management for multi-throughput
    (every 20 sec a test).
    feature icon

    High sensitivity - comparable to CLIA

    The time-resolved fluorescence immunoassay enabling eary detection of desease onset
    feature icon

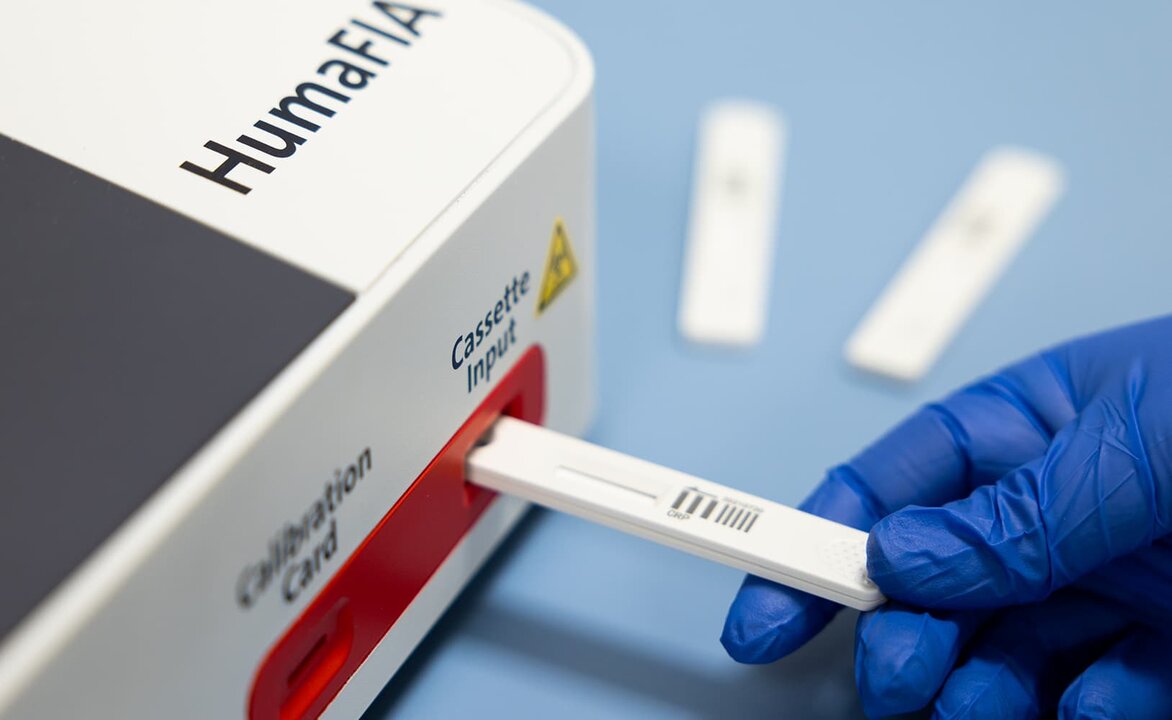

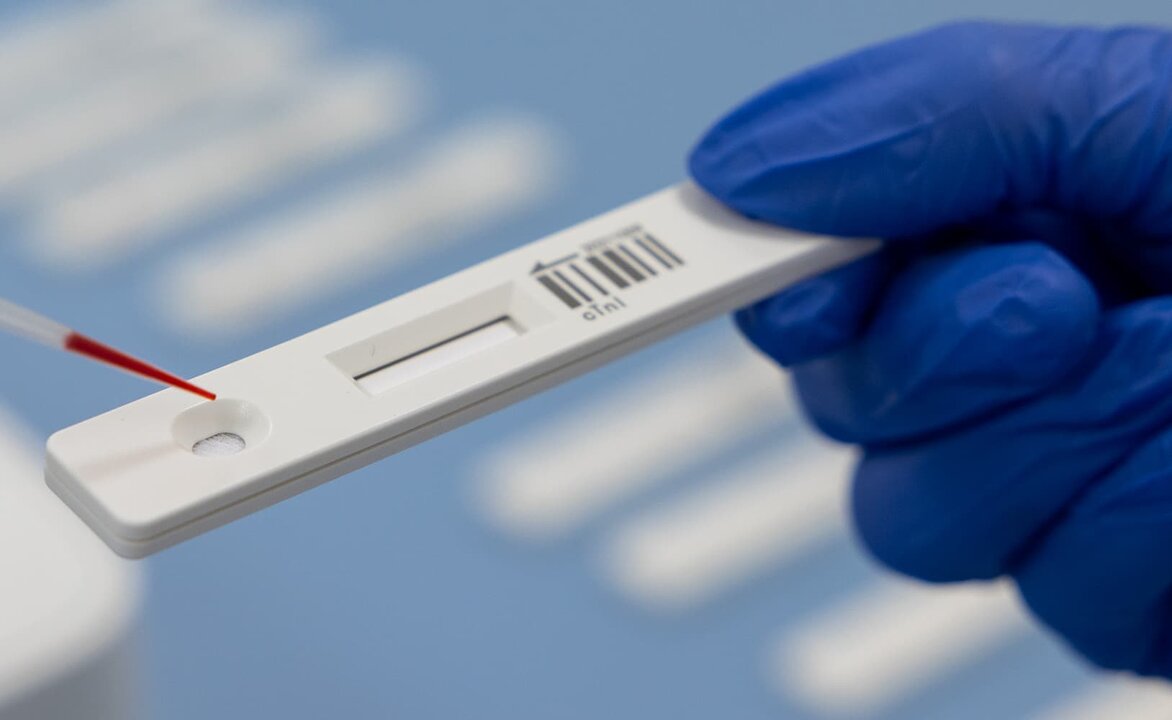

    Single sealed cartridges - precalibrated

    Cost-efficient for a wide range of biomarkers and sample tpyes: Cardiac, inflammatory, thryoids, diabtes or rheumathoid panel, on whole blood, serum or plasma samples
    feature icon

    Auto-Quality Checks

    Verifying cartridge type, incubation-temperature and -duration and predilution-correction
    feature icon

    QC-module

    QC-target value check, traceable QC-results
    feature icon

    Parameter spectific controls plus Standard-Cartridge

    Checks both, instrument function and assay performance, on easy to store control materials
    feature icon

    Powerful software with touchscreen interaction

    Easy customize your clinical cut-off values or filter your database for LIS-exchange
    feature icon

    Printer

    Integrated thermal printer
    feature icon

    Multi-language

    Software in English, Spanish and French
    feature icon

    Incubator-HumaCool

    allows incubation of cartridges at any ambient temperature, no need of an air-conditioned laboratory.

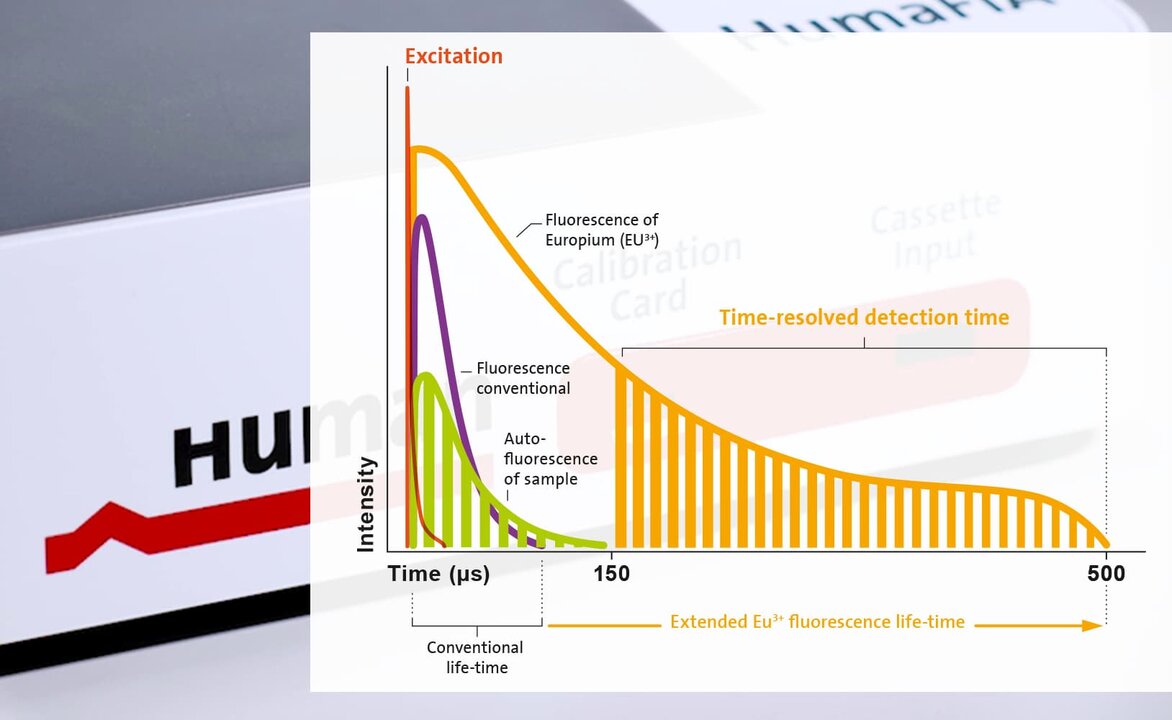

    Outstanding sensitity by time-resolved fluorescence technology

    Enables tests with very high sensitivity for early detection of critical diseases comparable to chemiluminescence assays. By utilizing the extended fluorescence lifetime of europium (Eu^3+) chelates, it offers a significant advancement in reducing background noise, particularly from autofluorescence in challenging samples like whole blood. This technology enables highly sensitive tests with low limits of detection (LOD), overcoming the limitations of traditional fluorescence assays. The combination of sensitivity, speed, and specificity makes TR-FIA an exceptional tool for clinical diagnostics and research applications.

    Reliable results thanks to built-in intelligence

    • Correct results due to automatic sample-type recognition (whole blood, serum or plasma
    • Auto quality check with incubation time and temperature monitoring and LOT verification
    • Workflow management allows a test to be run every 20 seconds
    • Auto pre-dilution factor to extend the measuring range
    • Lab-free calibration by sample-type specific calibration on card

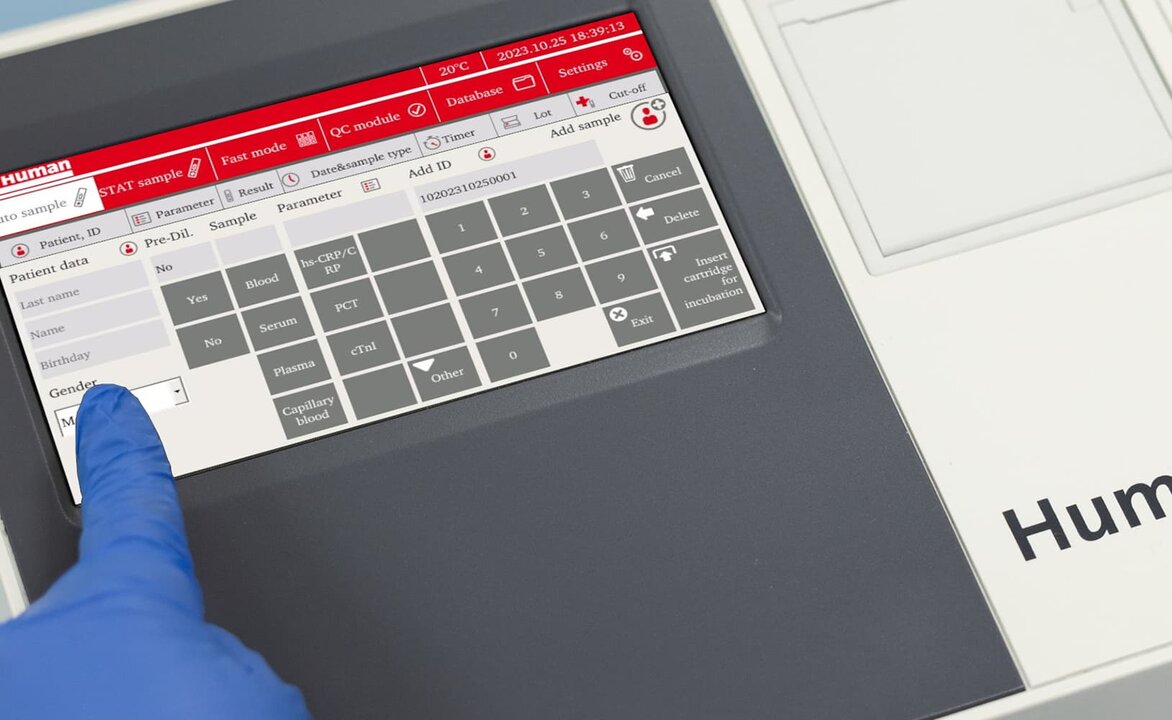

    Exellent usabilty by intuitive and powerful software

    • Offers an enhanced user experience,designed for intuitive touchscreen interaction
    • Provides easy access to information through a searchable results database
    • Three modes to run patient samples: Standard-, Fast- and STAT-sample mode
    • Upload of patient ID by barcode reader

    Efficient, on a small lab-space: comprehensive testing options with a wide range of biomarkers

    • Offers a diverse range of biomarkers for Cardiac, inflammatory, thryoids, diabtes or rheumathoid panel, on whole blood, serum or plasma samples by a single plattform
    • Experience enhanced diagnostic precision: benefit from the high sensitivity of Troponin I with a linearity range starting as low as 0.02 ng/ml
    • Enjoy rapid results with an exceptionally short CRP incubation time of only 1.5 minutes

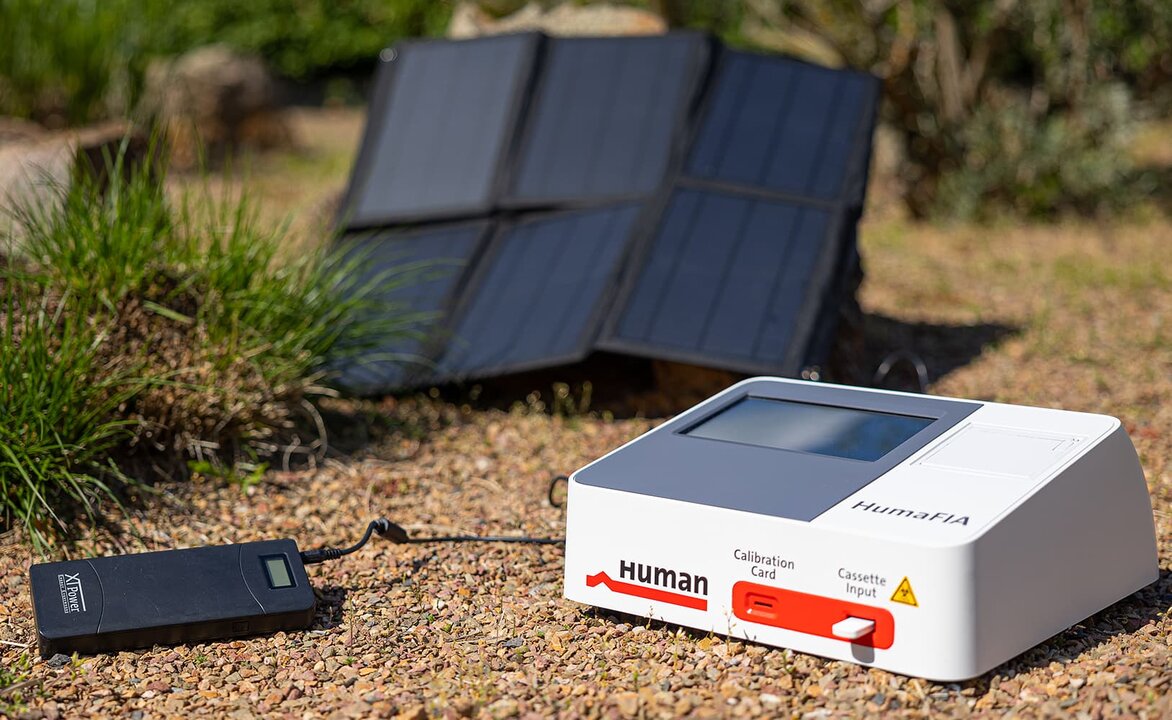

    Independence from mains for accurate results on-the-spot

    • HumaFIA can even run for almost up a full working day (8 hours) off-grid with the optional HUMAN battery pack.
    • For greater flexibility, the battery pack can also be recharged using the optional solar panel.

    Techspecs

    Analyzer type

    Semi-automated time-resolved fluorescence immunoassay analyzer

    Reagent system

    Closed, dry reagent single sealed cartridges, pre-calibrated

    Throughput

    One test every 20 seconds

    Time to first result

    1.5 to 15 min. depending on assay

    Sample type

    Serum, plasma, whole blood (parameter dependent)

    Operation modes

    Standard, STAT, Fast sample mode plus QC-Mode

    Barcode reader

    Integrated for sample type detection
    optional for patient ID, or name.

    Method

    Time-resolved fluorescence, europium

    LIS

    Bidirectional

    Physical dimensions (WxDxH)

    • 30 x 30 x 12 cm
    • Weight: 4.2 kg

    Environmental

    • Operating: 18-28°C, 20-90% relative humidity: non-condensing , air pressure 86.0-106,0 kPA
    • Storage: 10-40°C, 93% relative humidity, non condensing, air pressure 50.0-106.0 kPA

    We’ve helped hundreds of global companies

    We’ve helped hundreds of global companies

    • Mr. Damian Onyekachi
      testimonial flag Nigeria

      “During our trial period, we had the opportunity to test CRP using HumaFIA in STAT sample mode. The experience left us thoroughly impressed. What stood out the most was the user-friendliness of HumaFIA. Its intuitive interface and streamlined process made testing remarkably easy. We were equally amazed by the speed at which results were generated, without compromising accuracy. The consistency of reproducible results was another notable feature that boosted our confidence in the system.”

      GEM Diagnostics - Nigeria

      Mr. Damian Onyekachi

    • Dr. Mathieu MBOUANGUI - Co-founder
      testimonial flag Republic of Congo

      “HumaFIA has been a game-changer for our laboratory. We are delighted by the substantial improvement HumaFIA has brought to our acute myocardial infarction diagnosis capabilities, overcoming challenges related to availability and diagnostic limitations encountered with other systems. This has been particularly impactful as a significant majority of our patients, approximately 80%, exhibited troponin levels below 0.1 ng/ml. Since implementing HumaFIA, we have experienced reliable and efficient cardiac marker testing. The stability and ready-to-use nature of the reagents simplify our process, allowing us to store the kits at a 4 to 30° C. The direct testing of whole blood without sample pretreatment has reduced manual steps and eliminated the need for additional buffers. We highly recommend HumaFIA to other laboratories and healthcare facilities in need of a superior cardiac marker testing solution.

      BIOMED24 - Republic of Congo

      Dr. Mathieu MBOUANGUI - Co-founder

    • Dr Marie Paule NGOGANG
      testimonial flag Cameroon

      The HUMAFIA® instrument presents with a good compact and robust shape. The size is suitable and the instrument easily fits on a laboratory bench, even a narrow one. No issue was observed during the installation of the instrument, and it functioned well with our electrical voltage and power. PROCALCITONIN assay (PCT): Procalcitonin testing was performed for targeted groups of patients presenting with fever. The conclusion is that the assay is really strongly correlated and predictive of bacterial infection Patients presenting with cryptococcal infections or tuberculosis did not have high values. The test also helped to diagnose potential bacterial infection in cancer patients, helping to differentiate with para neoplasic fever.

      MINISTRY OF PUBLIC HEALTH GENERAL HOSPITAL OF YAOUNDE CENTRAL LABORATORY - Cameroon

      Dr Marie Paule NGOGANG
