Throughput
Up to 60 samples/hour
Instruments
Solution
Disease

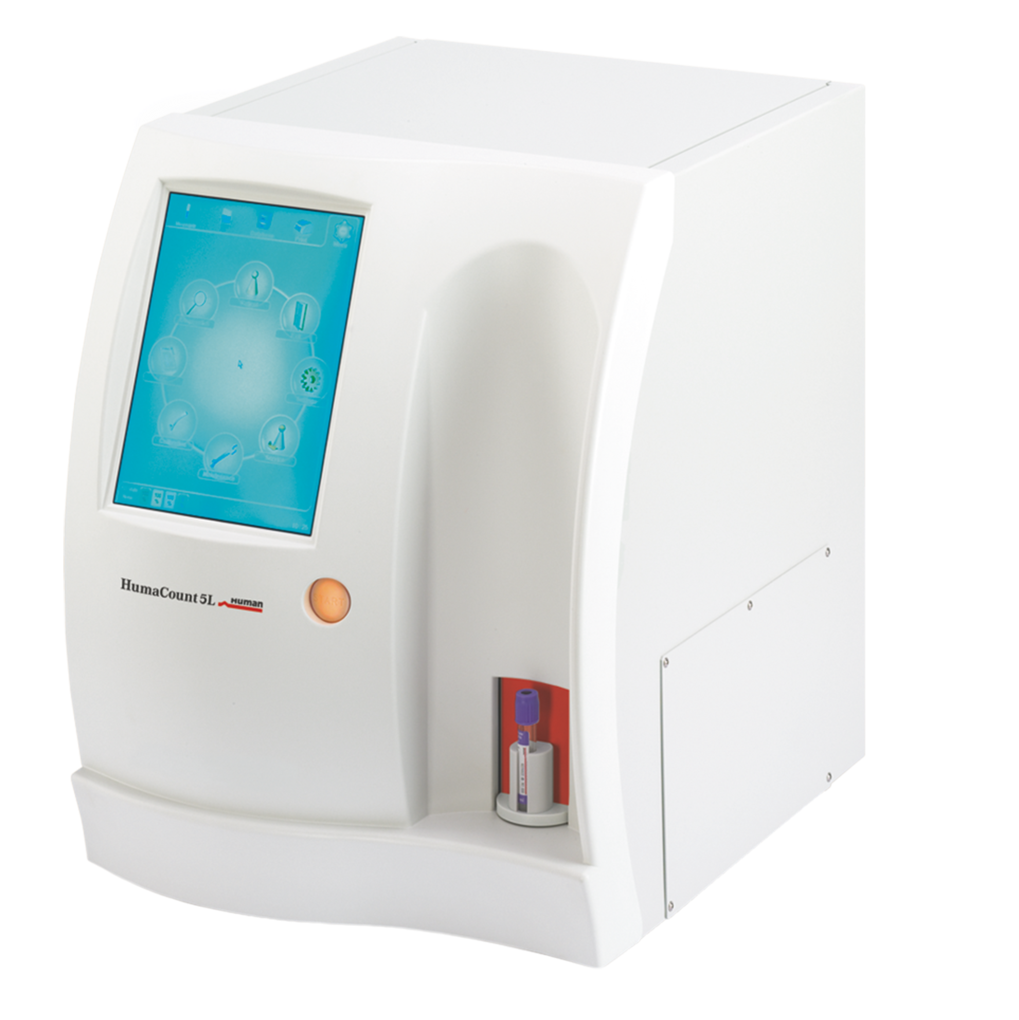

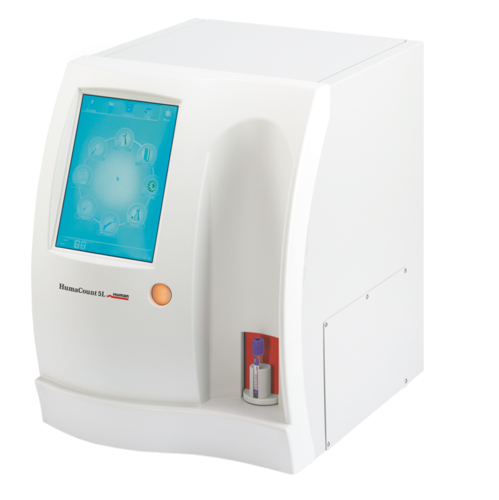

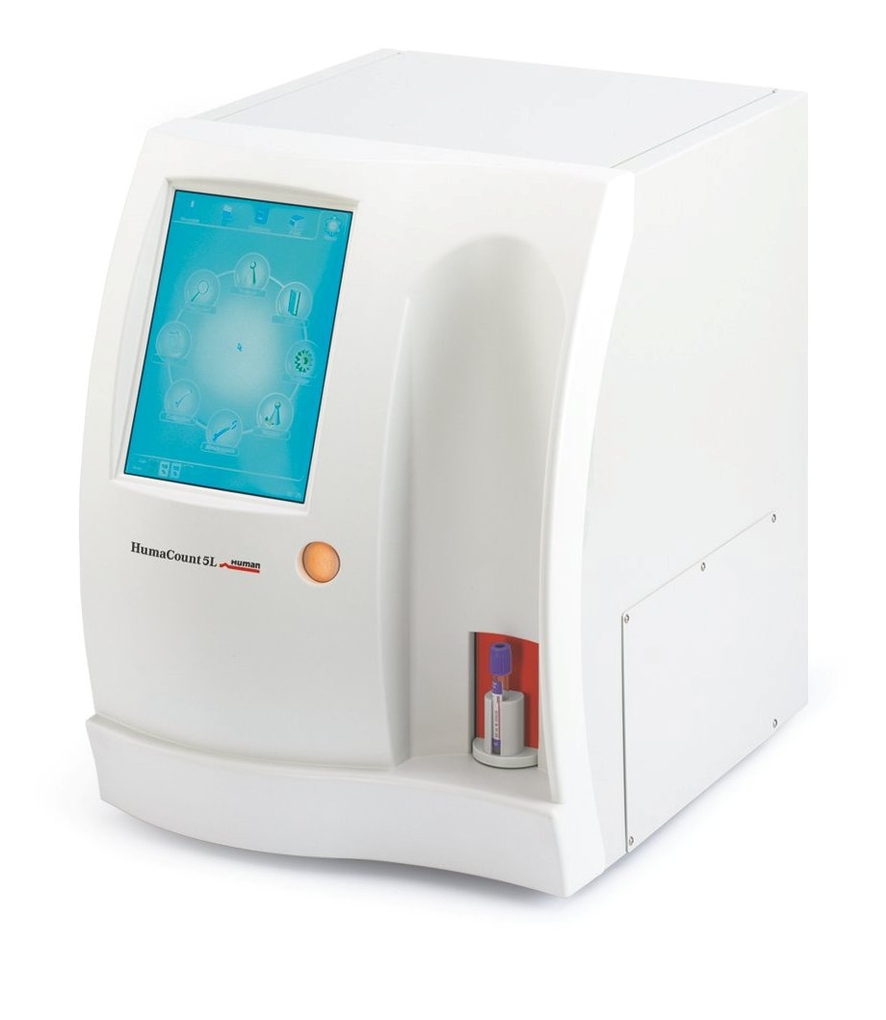

HumaCount 5L
CoreLab DXHematologyInstrumentsHumaCount Systems 5-part Diff
Price per unit:
XXX,XX €
Limited Stock
5-part differential system
Parameters: 26
> WBC, LYM, MON, NEU, BAS, EOS (LYM%, MON%, NEU%, BAS%, EOS%)
> RBC, MCV, MCH, MCHC, HGB, HCT, RDWc, PLT, MPV, PDWc, PCT, RDWsd, PDWsd, P-LCC, P-LCR
> RBC, MCV, MCH, MCHC, HGB, HCT, RDWc, PLT, MPV, PDWc, PCT, RDWsd, PDWsd, P-LCC, P-LCR
Reagents
Heat-stable reagents with a wide temperature range for storage and transportation, from 2 to 30°C
Additional flags
for Large Immature Cells (LIC) and Atypical Lymphocytes (ALY)

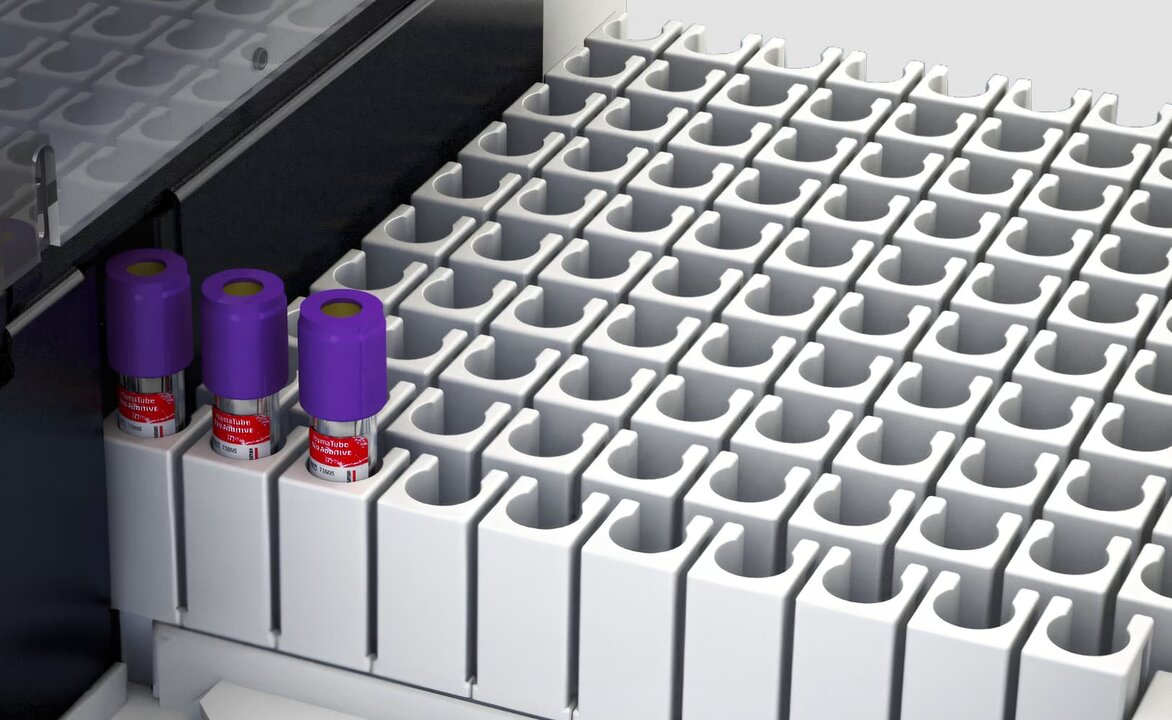

Auto-sampler (optional)
> Capacity 100 samples (10 racks)
> Patient ID mapping via barcode reader
> Built-in mixer with cap piercer
> Patient ID mapping via barcode reader
> Built-in mixer with cap piercer
Anti-Clogging Technology
Reduced clogging rates by high-energy burst after each measurement cycle, preventing protein deposition in the measurement chambers.
Data storage
100,000 samples incl. histograms, dot plots
Intuitive and powerful software
Offers an enhanced user experience, designed for intuitive touchscreen interaction
LIS
Easy integration into hospital management systems with HL7, bidirectional LIS connection

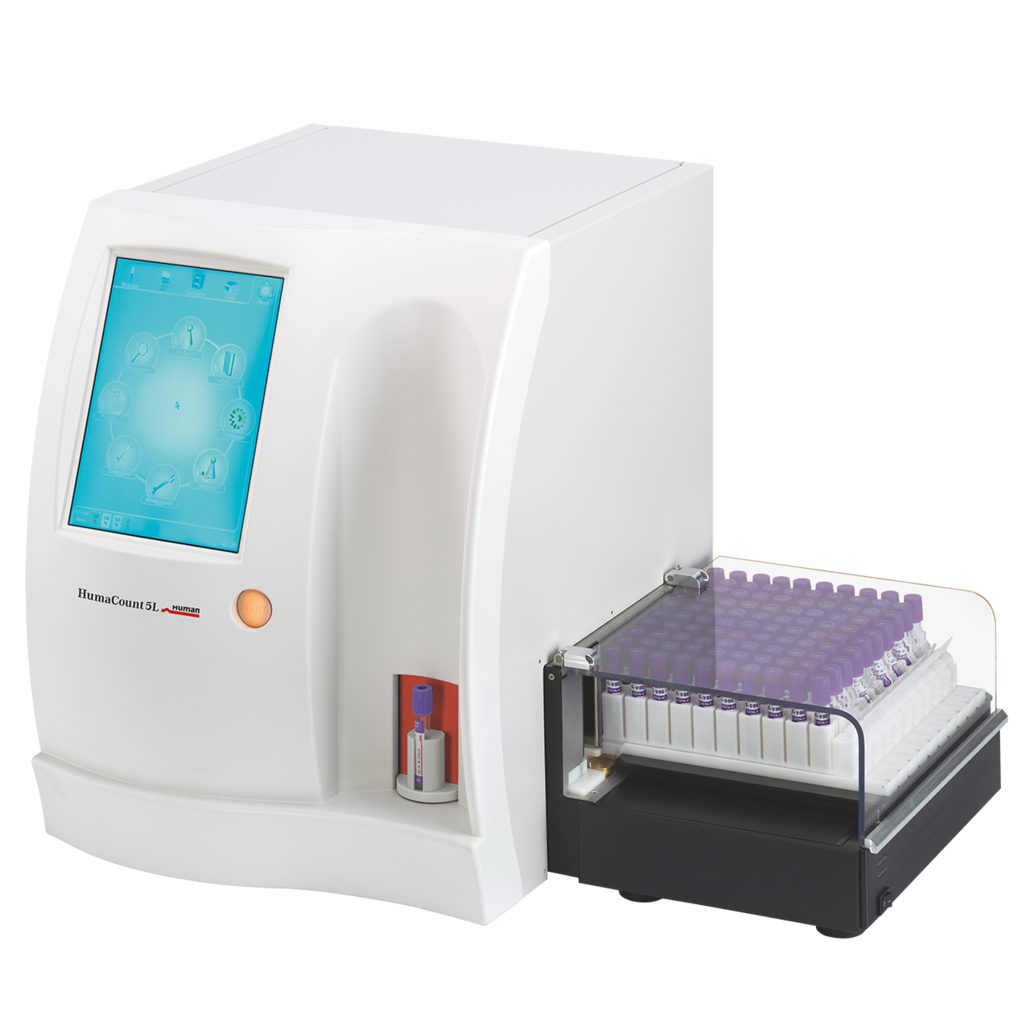

Increased walk-away time with autosampler
- Capacity 100 samples (10 racks)
- Patient ID mapping via barcode reader
- Built-in mixer with cap piercer

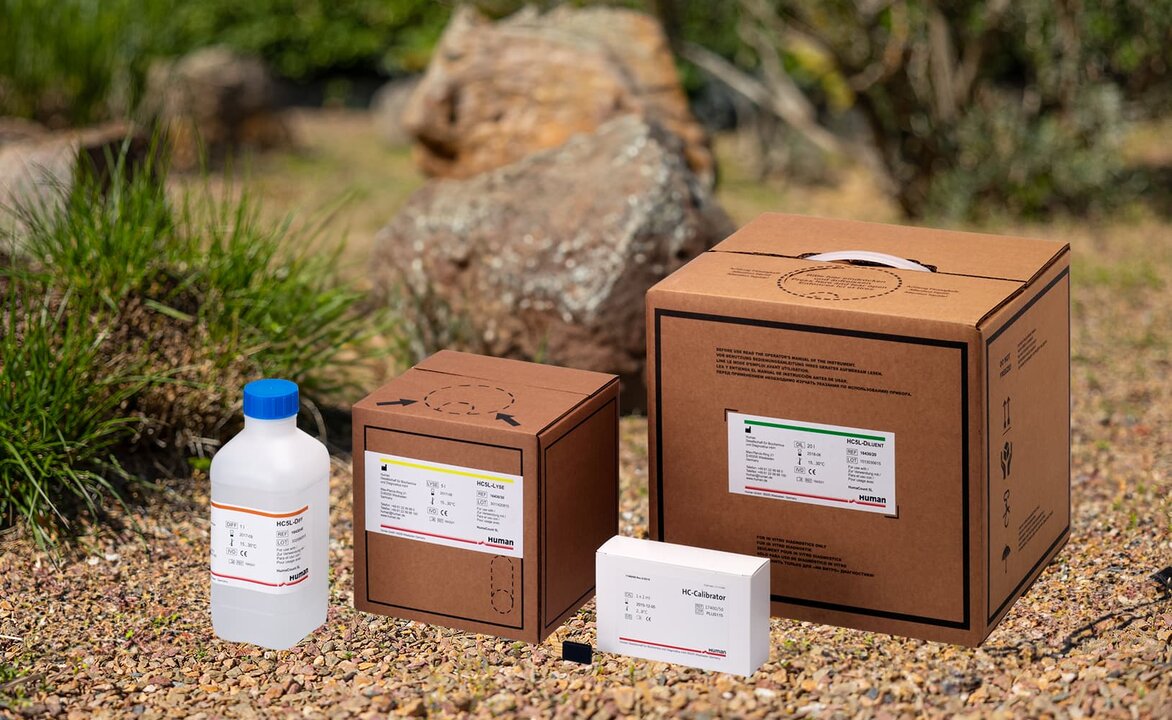

Temperature stable reagents "Made in Germany
Robust reagents, ready to use and easily stored
- Our HumaCount reagents have a wide storage temperature range - from 2 - 30° C, combined with a shelf life of 36 months. With these reagents, you don't have to worry about transportation and storage.

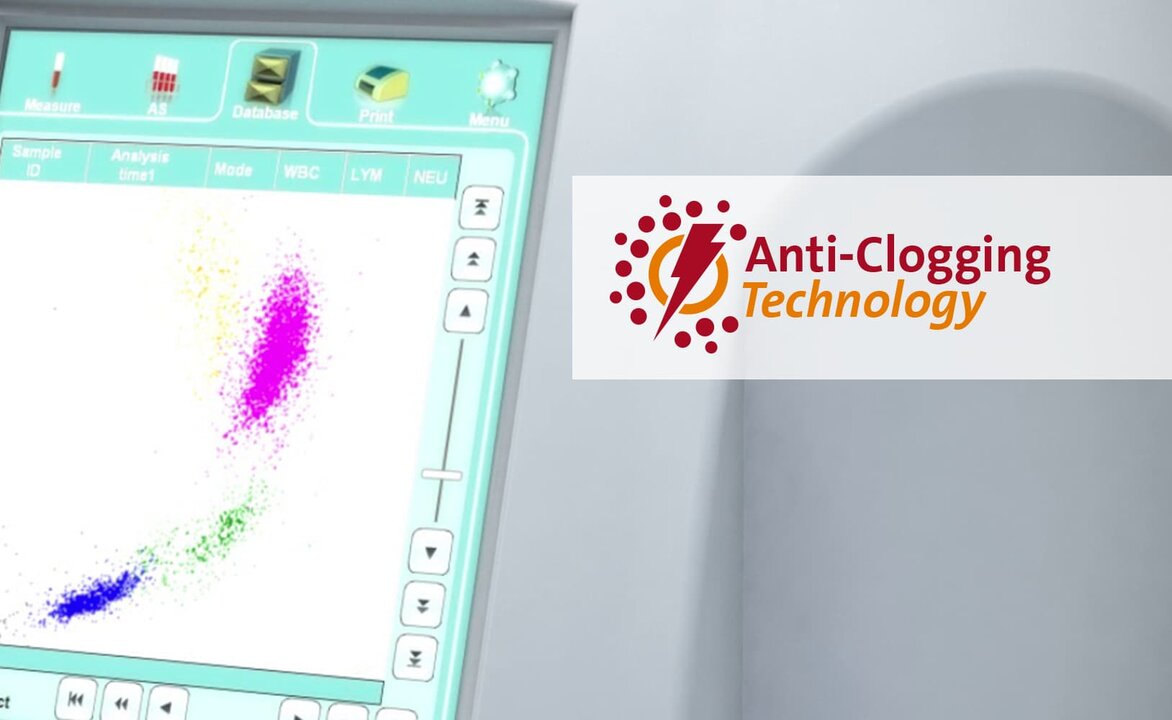

Anti-Clogging Technology
- High-energy burst for reduced clogging rates
- Protein burn-off after each measurement cycle
- Low cleaner consumption
- Steady workflow with reliable cell counting
Techspecs
Analyzer type
Automatic hematology Analyzer
Reagent system
Closed
Throughput (max.)
60 samples / hour
# of Parameters
CBC+5DIFF mode (26 parameters): WBC, LYM, MON, NEU, EOS, BAS, LYM%, MON%, NEU%, EOS%, PLT, PCT, MPV, PDW, BAS%, RBC, HCT, MCV, HGB, MCH, MCHC, RWDcv, RDWsd, PDWcv, PDWsd, P-LCC, P-LCR
Reaction / reading system
Impedance method (2 chambers)
LED 540 nm for HGB measurement
Laser for differentiation
LED 540 nm for HGB measurement
Laser for differentiation
Barcode reader
Built in barcode reader in the auto sampler
Optional barcode reader via USB
Optional barcode reader via USB
Quality control
16- and 64-day Levey-Jennings charts,
separate QC database (6 level)
separate QC database (6 level)
Languages available
UK-English, US-English, Hungarian, German, Italian
Russian, Polish, Spanish, French, Turkish
Russian, Polish, Spanish, French, Turkish
LIS
HL7, bi-directional LIS connection
Physical dimensions (W x D x H)
- 54 x 46 x 45 cm
- + autoloader 18 x 27 x 32 cm
- Weight: instrument 35 kg + autoloader 10 kg
Environmental
- Operating: temperature: 15…30°C, humidity: 80 % non-condensing Storage: temperature: 5…30°C, humidity: 80 % non-condensing Altitude: up to 3,000 m
