HumaCount 5D CRP

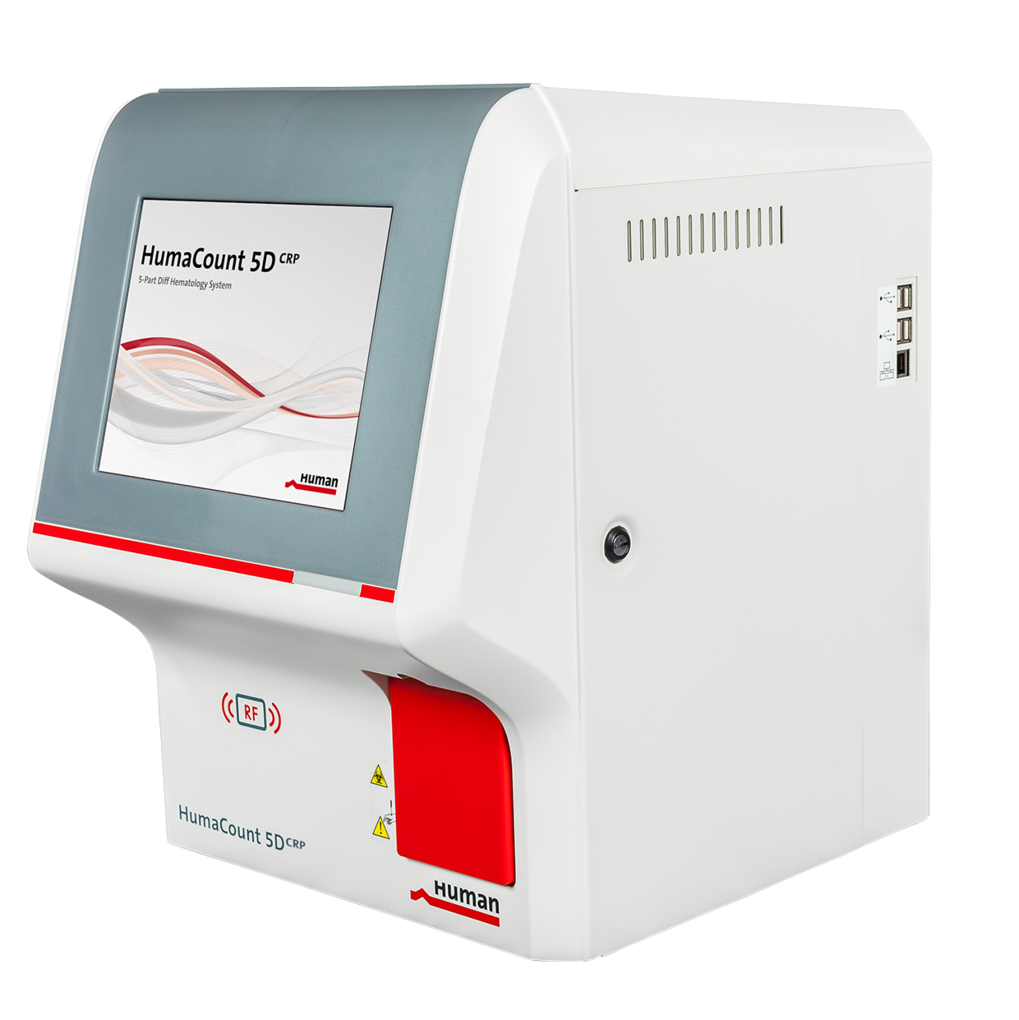

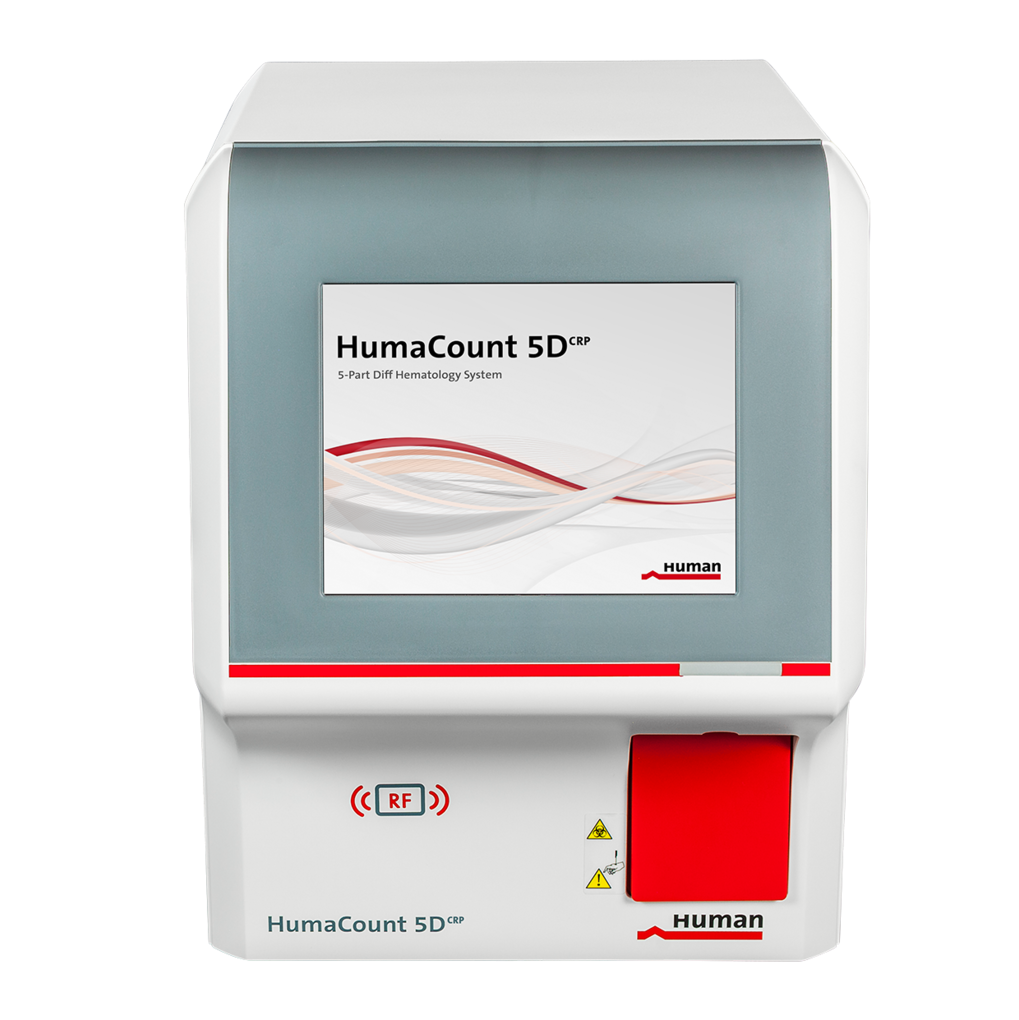

Name: HumaCount 5D CRP
Brand: HUMAN Diagnostics Worldwide
SKU: 16451
Availability: InStock

CoreLab DXHematologyInstruments

Price per unit:

XXX,XX €

Get a consultation

5-part diff and C-Reactive Protein from one drop of blood

The 2-in-1 solution – 5-part diff and C-Reactive Protein The HumaCount 5DCRP offers the possibility of simultaneous measurement of CRP and 5-part diff parameters out of one and the same sample. The reduction in numbers of microscopy is the driving force in hematology. New parameters provided by the HumaCount 5DCRP like Large Immature Cells (LIC) and atypical Lymphocytes (ALY) help to reduce the manual workload by focusing on the confirmation of abnormal cells. The 3D-laser-scatter technology guarantees an excellent 5- part differentiation as required by clinicians. The ability to work with both venous and capillary blood samples, make the HumaCount 5DCRP a well-rounded instrument. The compact size and high throughput support the placement in both small and medium sized labs.

Throughput

Up to 60 samples per hour
Up to 40 samples per hour incl. CRP

Parameters: 32

CRP, RBC, MCV, HCT, RDW-SD, RDW-CV, HGB, MCH, MCHC, PLT, MPV, PCT, PDW, P-LCC, P-LCR, WBC, LYM#, LYM%, MON#, MON%, NEU#, NEU%, EOS#, EOS%, BAS# and BAS%
> Additional research parameters such as ALY#, ALY%, LIC#, LIC%, NRBC# and NRBC%.

Reagents

Heat-stable reagents with a wide temperature range for storage and transportation, from 2 to 30°C

Direct capillary blood process

OptimalCount Technology guarantees accuracy as exact as with venous samples, 20 μl sample volume, almost no dead volume, and precise dilution – thanks to auto-dispensing.

Mode switch function

Choose from different testing combinations: 5-part diff, CRP, and CBC-count individually or in combination for each sample.

Distinct 5-Part Differential with CRP

Precise immune status assessment with excellent WBC differentiation and CRP inflammation detection

Data storage

Integrated PC with a storage capacity of 50,000 samples

Intuitive and powerful software

Offers an enhanced user experience, designed for intuitive touchscreen interaction

LIS

Easy integration into hospital management systems with HL7 standard

Direct capillary blood process for simple and painless sampling

OptimalCount Technology – accurate and convenient

Accuracy as exact as for venous samples
Blood volume defined by capillary tube
Total sample volume 20 µl and almost no dead volume
Dilution defined by auto-diluent dispensing
No manual steps needed

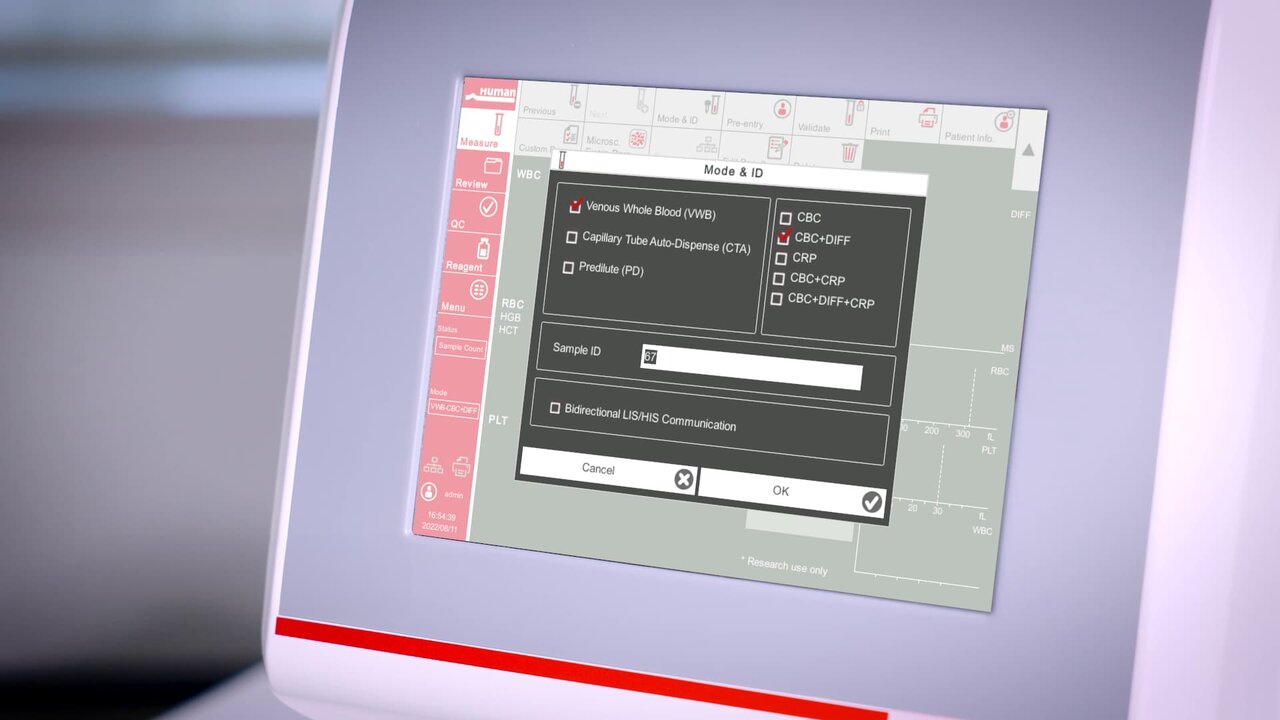

Mode Switch Function

Flexible and cost-efficient with one click.

Optimize your costs by reducing reagent consumption.
Choose from different testing combinations: 5-part diff, CRP, and CBC-count individually or in combination for each sample.

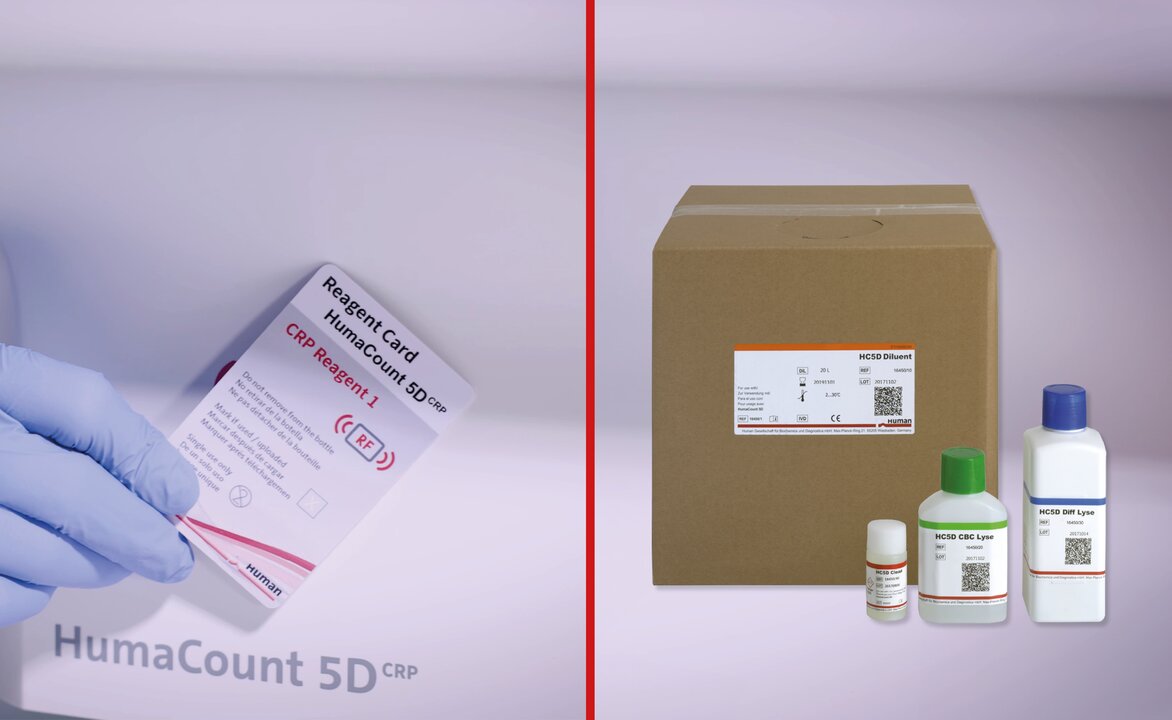

Robust reagents, ready to use and easily stored

Our HumaCount reagents have a wide storage temperature range - from 2 - 30° C, combined with a shelf life of 36 months. With these reagents, you don't have to worry about transportation and storage.

Enhanced 5-part differentiation with 3D scatter technology

3D scatter technology provides clear differentiation of white blood cell subpopulations, such as Lymphocytes (LYM), Neutrophils (NEU), Basophils (BAS), Eosinophils (EOS) and Monocytes (MON). Moreover, it enables the identification of immature and activated cells such as NRBC, LIC, and ALY. This enables an accurate and comprehensive analysis of the immune system.

Detect Inflammations with CRP

Fast diagnosis and treatment decisions with CRP for inflammation detection. Clear distinction between viral and bacterial infections can help to prevent the overuse of antibiotics. Automated hematocrit correction and traceability to international reference standard ensures accurate results.

Techspecs

Analyzer type

Automatic hematology Analyzer

Reagent system

Closed by RF card

Throughput (max.)

60 samples / hour

# of Parameters

32 parameters: CRP, RBC, MCV, HCT, RDW-SD, RDW-CV, HGB, MCH, MCHC, PLT, MPV, PCT, PDW, P-LCC, P-LCR, WBC, LYM#, LYM%, MON#, MON%, NEU#, NEU%, EOS#, EOS%, BAS# and BAS%
> Additional research parameters such as ALY#, ALY%, LIC#, LIC%, NRBC# and NRBC%.

Reaction / reading system

Impedance method
LED 525-535 nm for HGB measurement
3D Laser scatter technology for differentiation
Immuno-nephelometric detection of CRP

Barcode reader

Optional barcode reader via USB

Sample type

Human venous or capillary whole blood (K2 and K3-EDTA anticoagulant)
Capillary blood collected by HUMAN capillary tube

Languages available

English, Spanish, French, Russian

LIS

LIS bi-directional, HL7 standard

Physical dimensions (W x D x H)

36.4 x 49.8 x 49.5 cm
Weight: 33.5 kg

Environmental

Operating: temperature: 10…30°C, relative humidity: 20....85 % non-condensing

Consumables 7 Accessories 2
