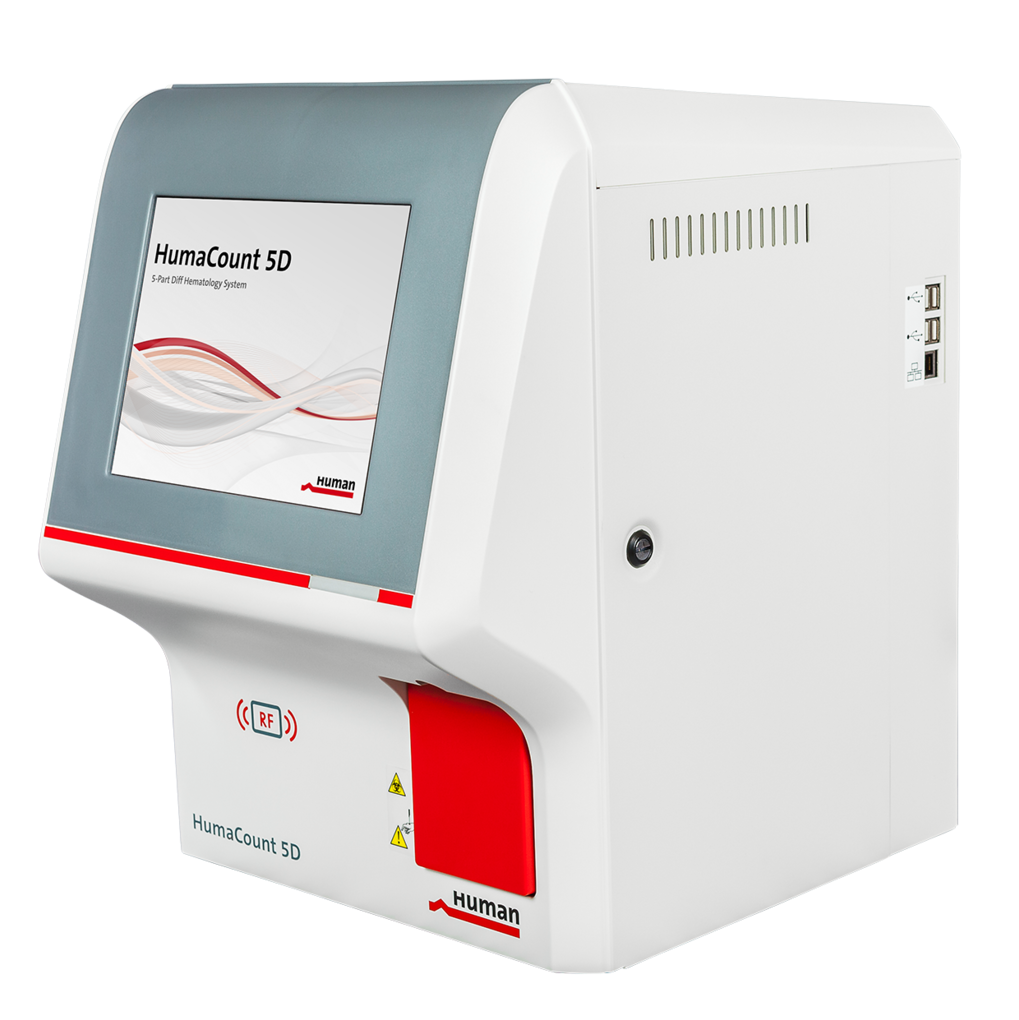

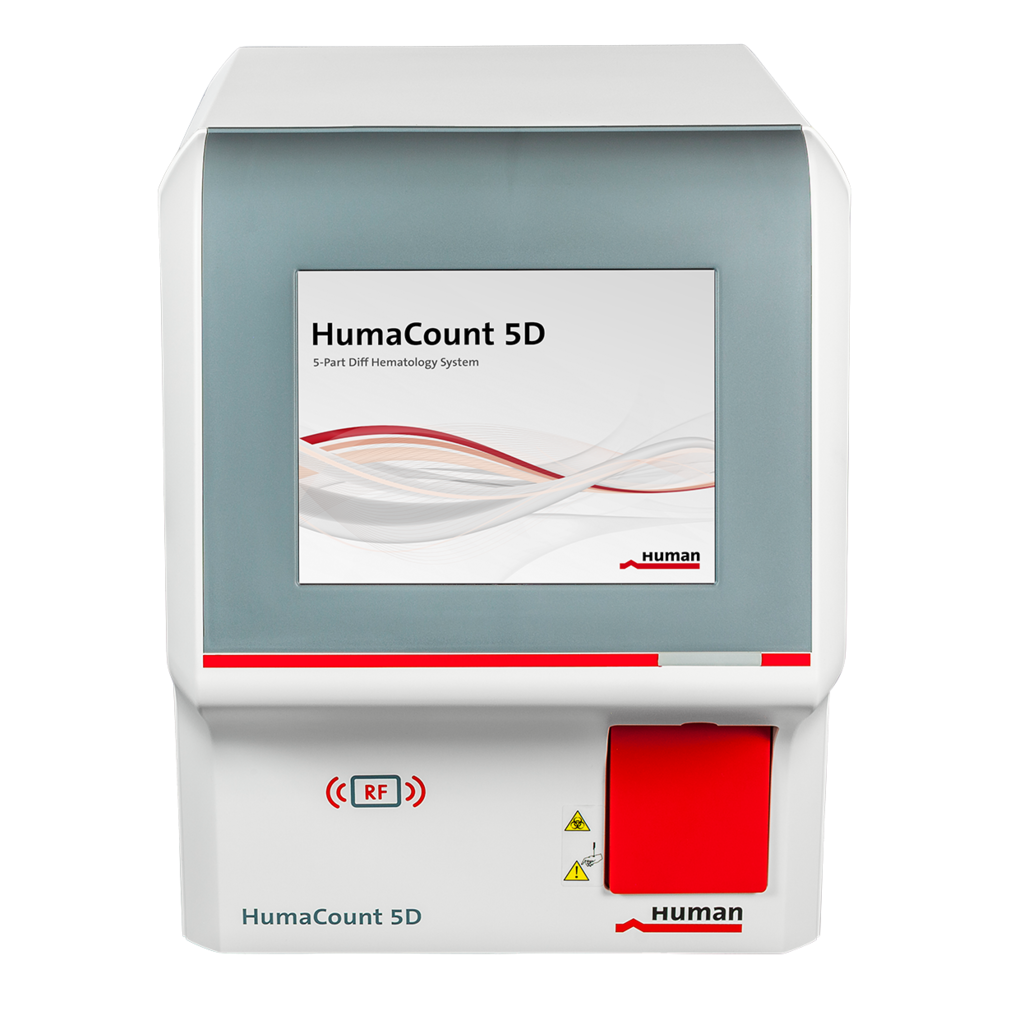

HumaCount 5D

Name: HumaCount 5D
Brand: HUMAN Diagnostics Worldwide
SKU: 16450
Availability: InStock

CoreLab DXHematologyInstrumentsHumaCount Systems 5-part Diff

Price per unit:

XXX,XX €

Get a consultation

Outstanding 5-part diff hematology system

The reduction in numbers of microscopy is the driving force in hematology. New parameters provided by the HumaCount 5D like Large Immature Cells (LIC) and atypical Lymphocytes (ALY) help to reduce the manual workload by focusing on the confirmation of abnormal cells. The 3D-laser-scatter technology guarantees an excellent 5- part differentiation by HumaCount 5D as required by clinicians. The ability to work with both venous and capillary blood samples, make the HumaCount 5D a well-rounded instrument. The compact size and high throughput support the placement in both small and medium sized labs.

Throughput

Up to 60 samples/hour

Parameters: 29

RBC, MCV, HCT, RDW-SD, RDW-CV, HGB, MCH, MCHC, PLT, MPV, PCT, PDW, P-LCC, P-LCR, WBC, LYM#, LYM%, MON#, MON%, NEU#, NEU%, EOS#, EOS%, BAS#, BAS%.
Additional research parameters such as ALY#, ALY%, LIC#, LIC%

Reagents

Heat-stable reagents with a wide temperature range for storage and transportation, from 2 to 30°C

Direct capillary blood process

OptimalCount Technology guarantees accuracy as exact as with venous samples, 20 μl sample volume, almost no dead volume, and precise dilution – thanks to auto-dispensing.

Mode switch function

Choose from different testing combinations: 5-part and CBC mode to save costs

Distinct 5-Part Differential

Precise immune status assessment

Data storage

Integrated PC with a storage capacity of 50,000 samples

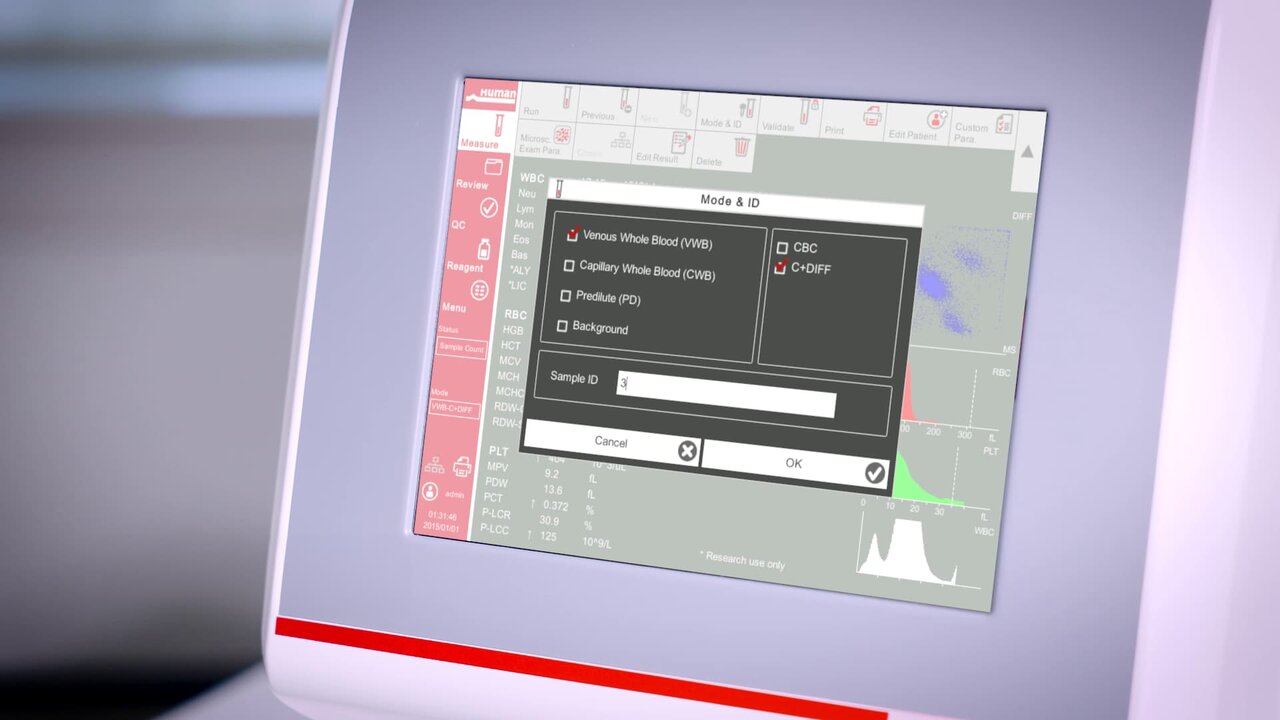

Intuitive and powerful software

Offers an enhanced user experience, designed for intuitive touchscreen interaction

LIS

Easy integration into hospital management systems with HL7 standard

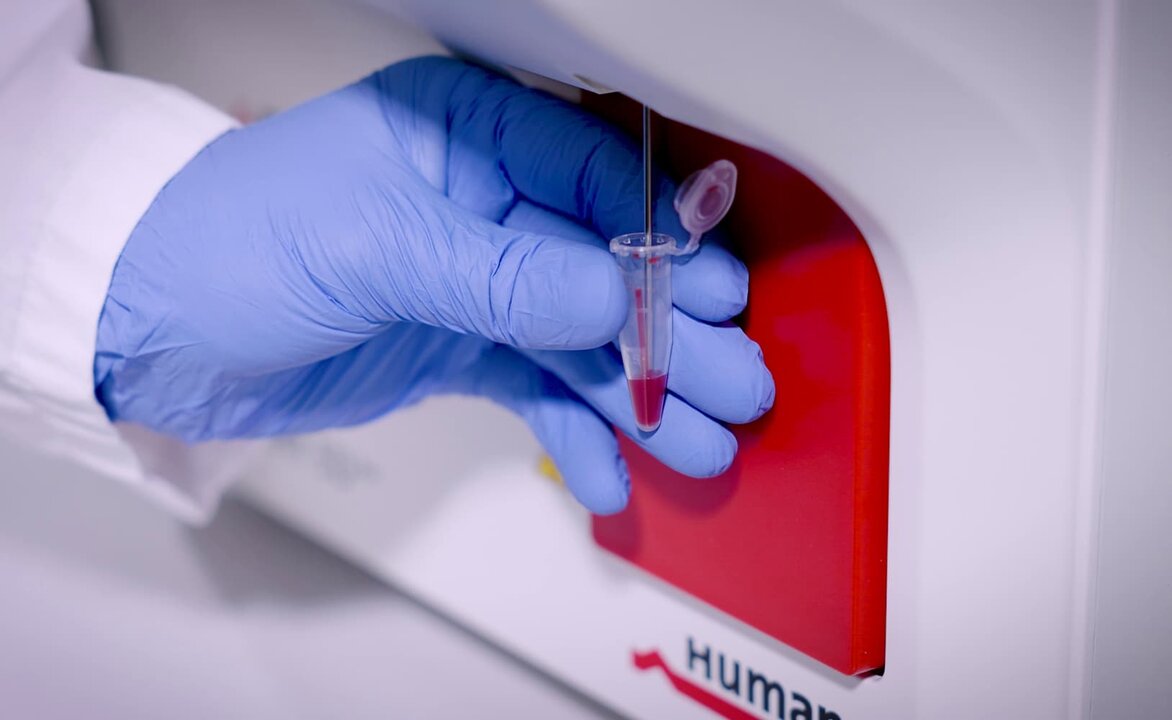

Direct capillary blood process for simple and painless sampling

OptimalCount Technology – accurate and convenient

Accuracy as exact as for venous samples
Blood volume defined by capillary tube
Total sample volume 20 µl and almost no dead volume
Dilution defined by auto-diluent dispensing
No manual steps needed

Mode Switch Function

Flexible and cost-efficient with one click Not every patient sample requires 5-part diff

Increase your flexibility with our one click option
Switch between full 5-part diff and CBC-count for each sample
Optimize your costs by reducing your reagent consumption 5-part diff = 3 reagents / CBC-count = 2 reagents

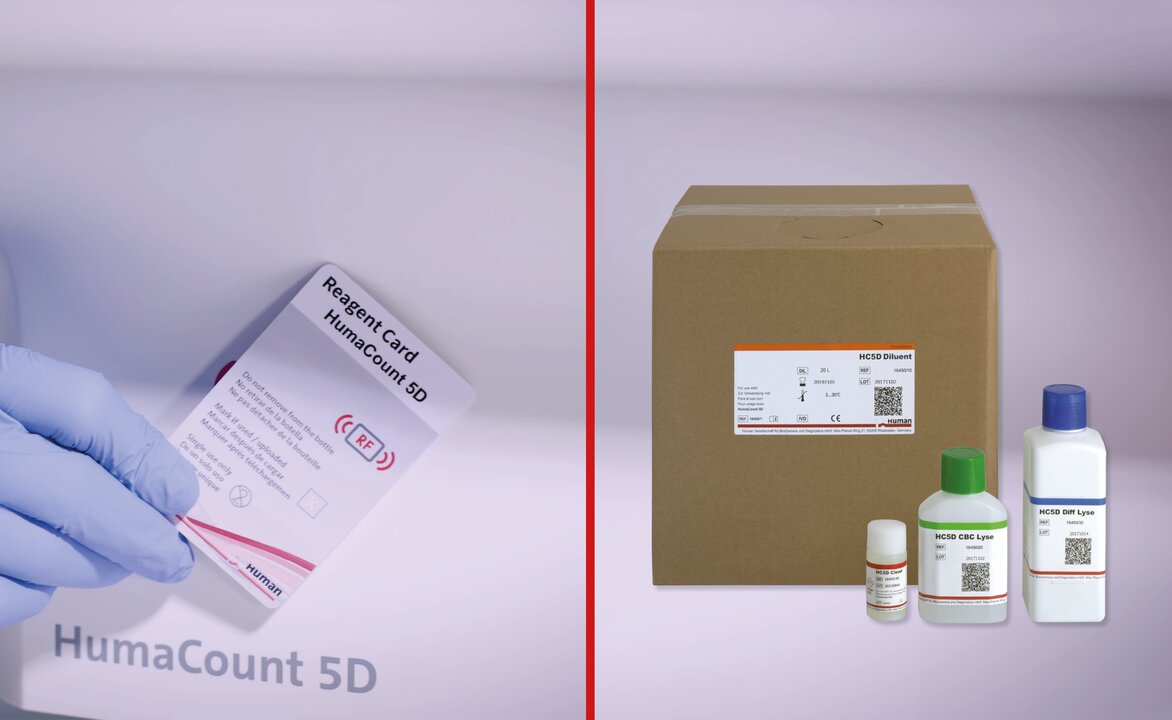

Robust reagents, ready to use and easily stored

Our HumaCount reagents have a wide storage temperature range - from 2 - 30° C, combined with a shelf life of 36 months. With these reagents, you don't have to worry about transportation and storage.

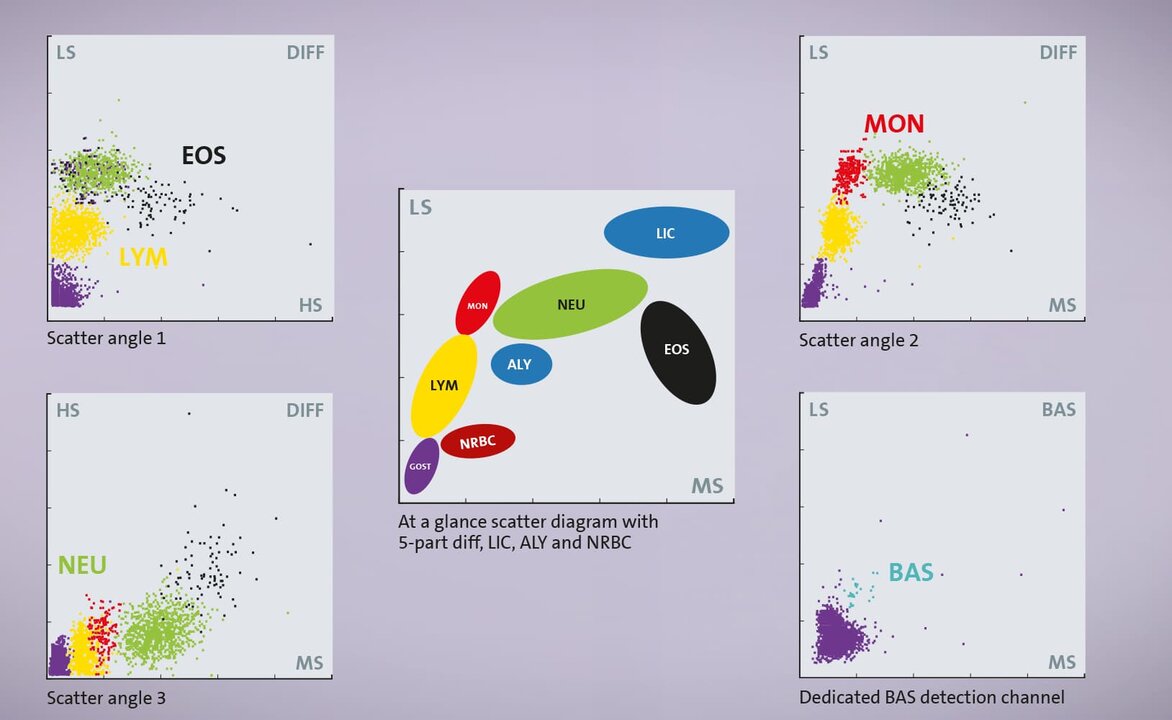

Enhanced 5-part differentiation with 3D scatter technology

3D scatter technology provides clear differentiation of white blood cell subpopulations, such as Lymphocytes (LYM), Neutrophils (NEU), Basophils (BAS), Eosinophils (EOS) and Monocytes (MON). Moreover, it enables the identification of immature and activated cells such as LIC, and ALY. This enables an accurate and comprehensive analysis of the immune system.

Techspecs

Analyzer type

Automatic hematology Analyzer

Reagent system

Closed by RF card

Throughput (max.)

60 samples / hour

# of Parameters

29 parameters:
RBC, MCV, HCT, RDW-SD, RDW-CV, HGB, MCH, MCHC, PLT, MPV, PCT, PDW, P-LCC, P-LCR, WBC, LYM#, LYM%, MON#, MON%, NEU#, NEU%, EOS#, EOS%, BAS#, BAS%.
Additional research parameters such as ALY#, ALY%, LIC#, LIC%

Reaction / reading system

Impedance method
LED 525-535 nm for HGB measurement
3D Laser scatter technology for differentiation

Barcode reader

Optional barcode reader via USB

Sample type

Human venous or capillary whole blood (K2 and K3-EDTA anticoagulant)
Capillary blood collected by HUMAN capillary tube

Languages available

English, Spanish, French, Russian

LIS

LIS bi-directional, HL7 standard

Physical dimensions (W x D x H)

36 x 42 x 48.5 cm
Weight: 28 kg

Environmental

Operating: temperature: 10…30°C, relative humidity: 20....85 % non-condensing
