HumaClot Pro

Name: HumaClot Pro
Brand: HUMAN Diagnostics Worldwide
SKU: 15800
Availability: InStock

CoreLab DXHemostasisInstrumentsAnalyzers

Price per unit:

XXX,XX €

Get a consultation

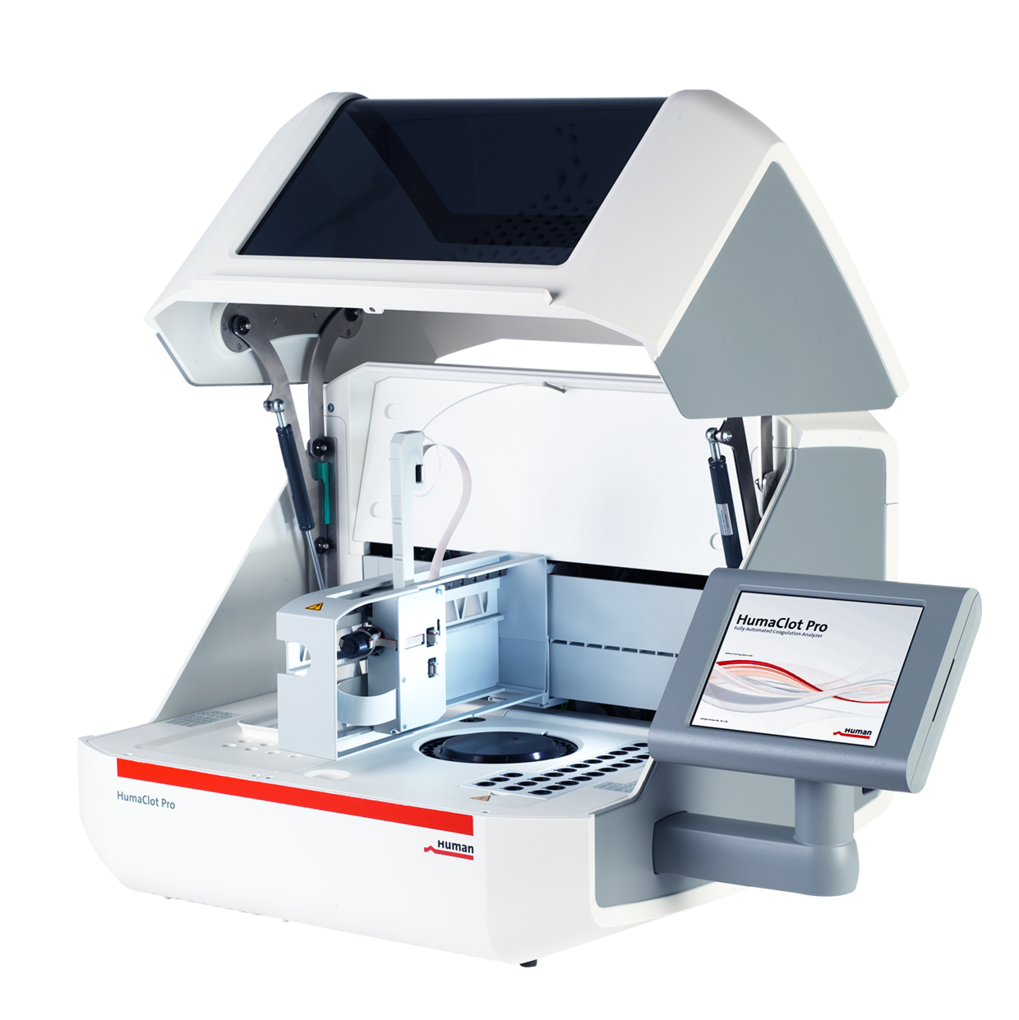

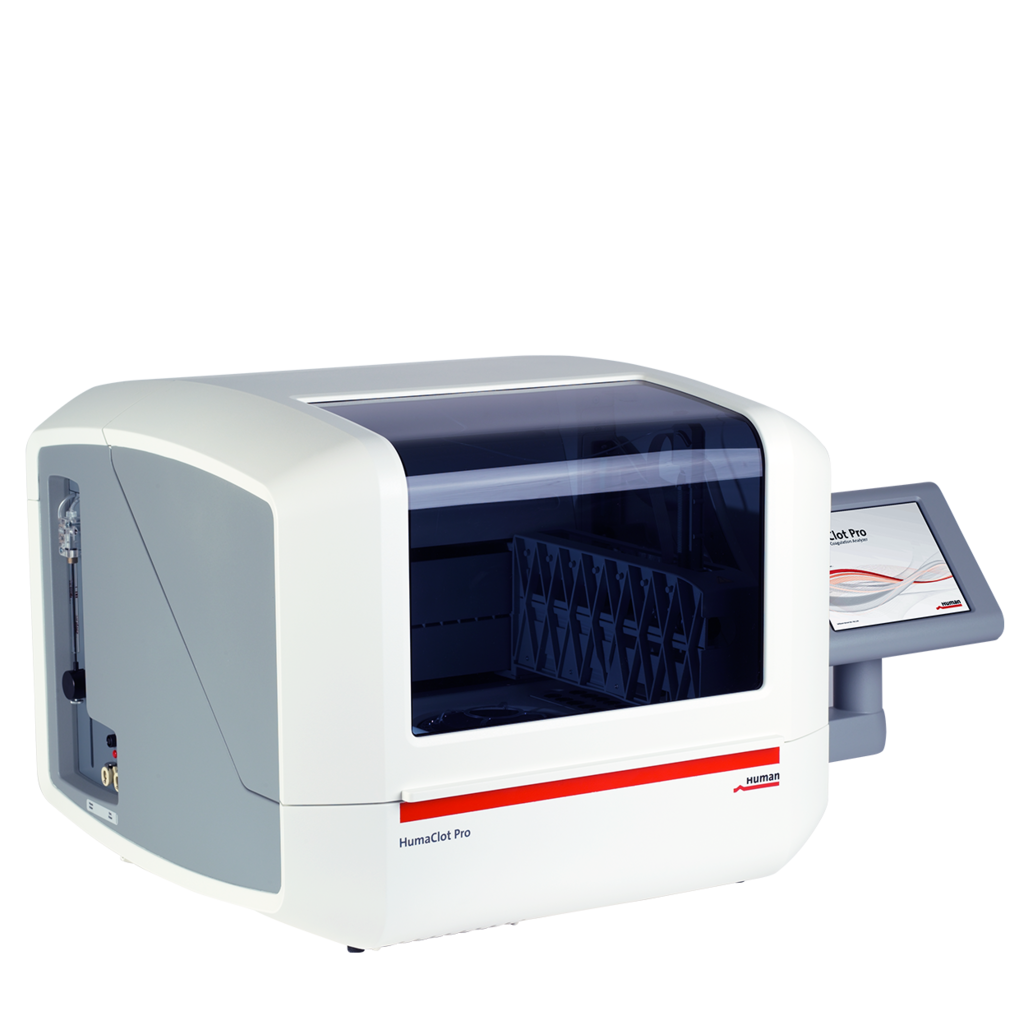

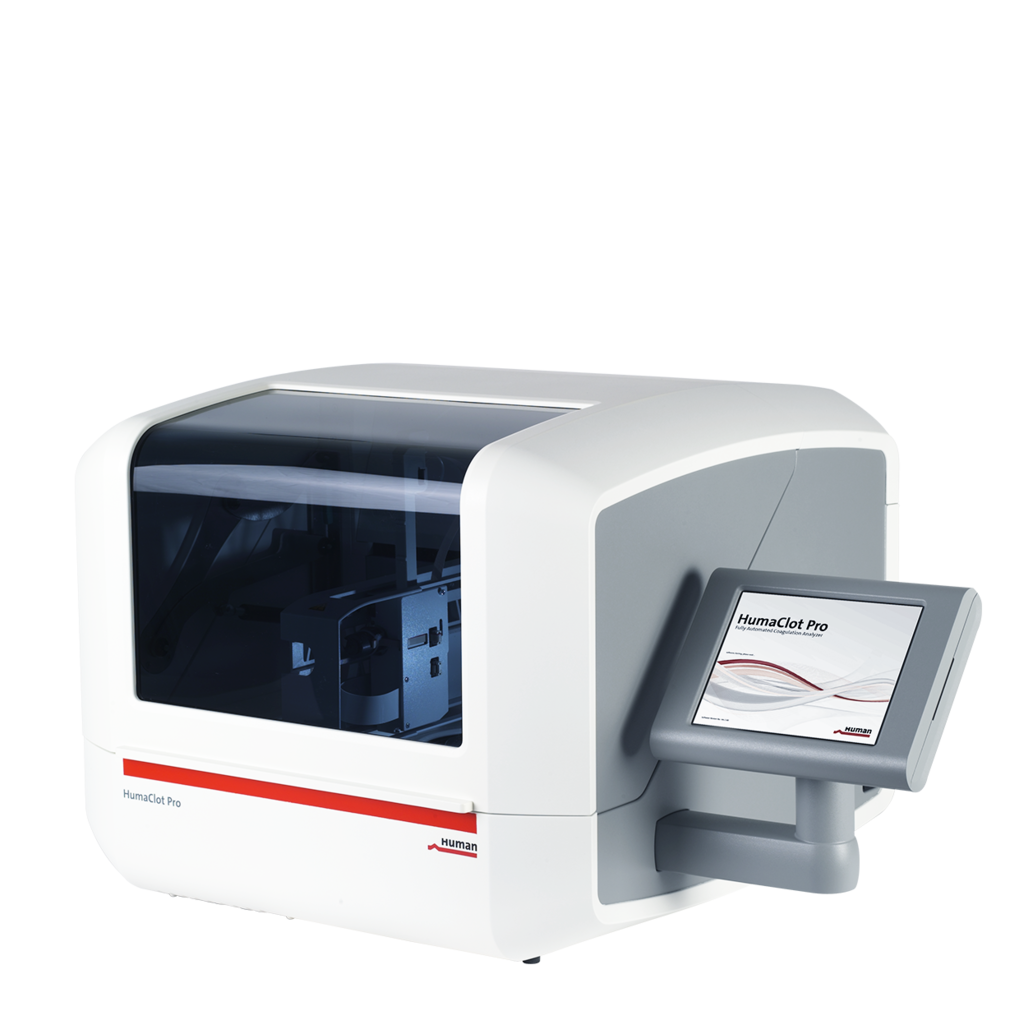

Fully automated compact coagulation analyzer

Experience the next level of coagulation diagnostics with the HumaClot Pro – where innovation meets precision in every test. HumaClot Pro is designed for both clinical laboratories and research facilities offering accuracy, efficiency, and reliability. With an intuitive touchscreen display and an user-centric design, the HumaClot Pro simplifies complex testing procedures and enables enables laboratory personnel to perform assays with ease and confidence.

Throughput: Up to 100 PT/h

Up to 100 PT/h
Up to 58 tests/h with mixed parameters (PT, aPTT, FIB)

Analysis modes

Suitable for clotting, chromogenic, immunologic and turbidimetric measurement

Wavelengths: 3

405 nm, 570 nm and 740 nm. For HIL samples the user may switch from the default 405 nm to the alternative 570 nm for PT and aPTT measurement.

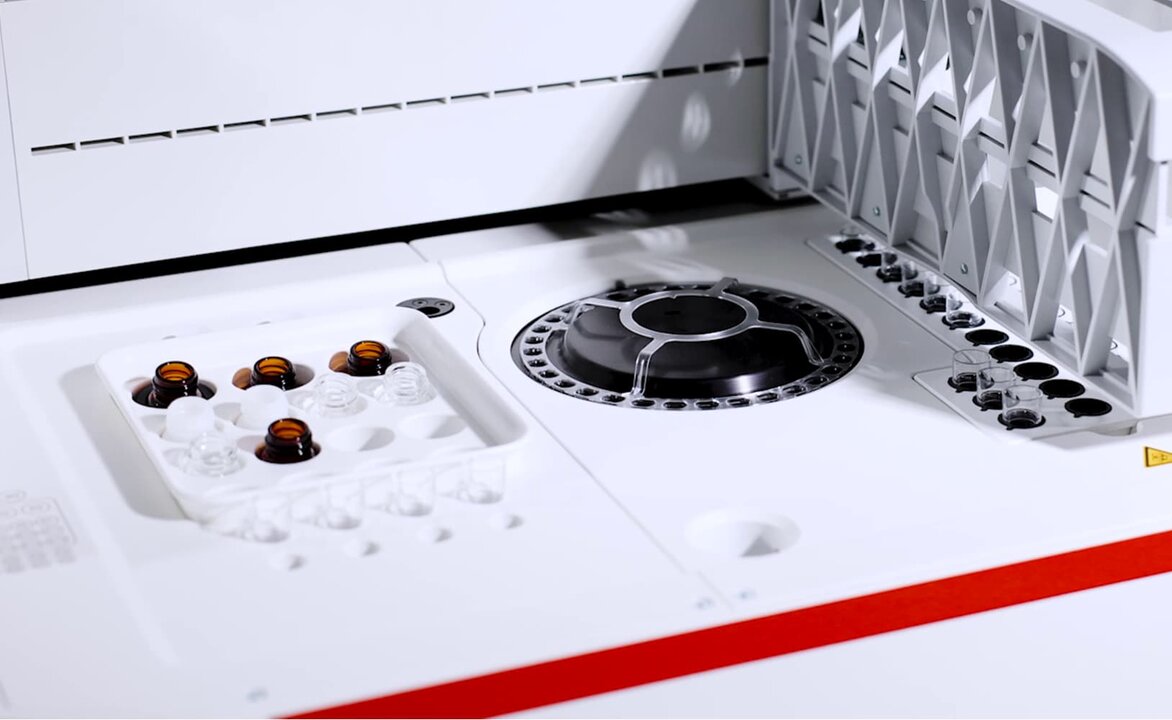

Reagent positions: 15

in a removable tray for cooled storage

Magnetic stirring

Magnetic stirring of the reaction mixture enables highest result quality even for sensitive assays such as HEMOSTAT D-Dimer

Intuitive and powerful software

Offers an enhanced user experience with integrated PC and touchscreen

Smart card technology

Ensures reliable results with HUMAN consumables and validated reagents

Multi-language

Software in English, Spanish, French, German,
Russian and Ukrainian

Barcode Reader

Internal sample barcode reader offers additional convenience for sample handling

Automate today – save time tomorrow

Stand-alone operation featuring auto-calibration, auto-dilution, auto-repeat and reagent level detection
Accurate walk-away time information for increased efficiency in routine use
Maximum flexibility: suitable for clotting, chromogenic, and immunoturbidimetric measurement
Built-in sample barcode reader ensures fast and accurate sample identification

Efficient reagent concept for your daily laboratory needs

Designed for usage in small labs or as a back-up instrument
Long onboard stability
Dedicated calibrator and controls

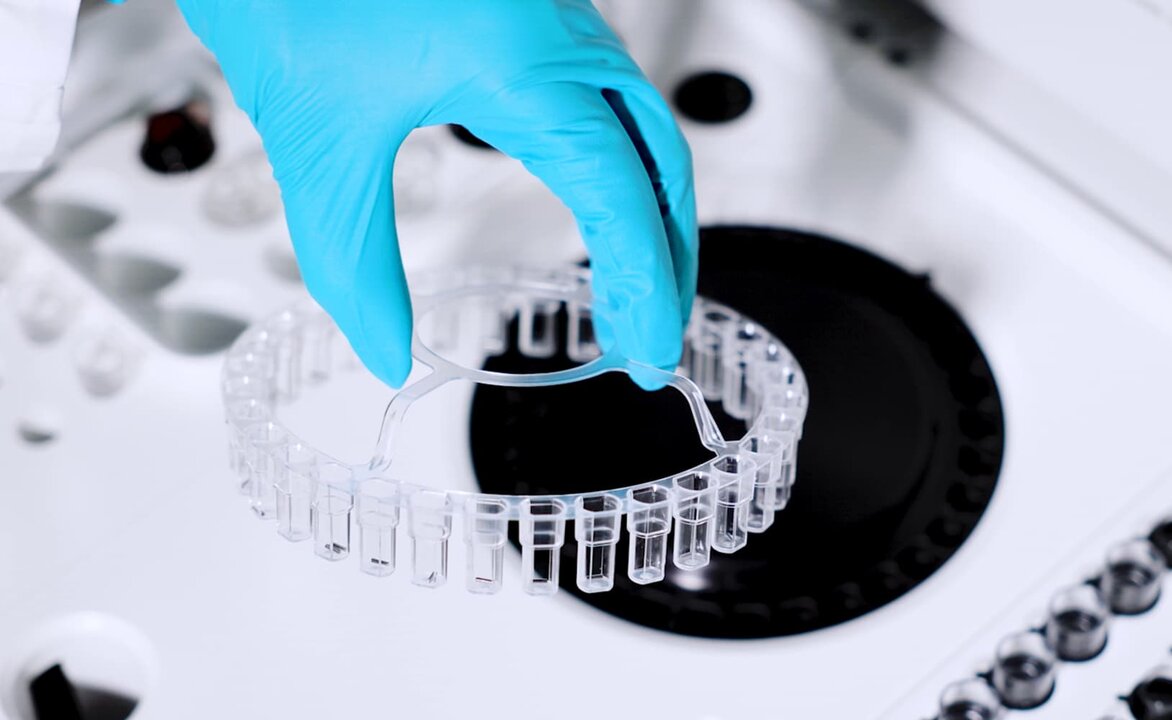

Efficiency in every ring

Convenient handling with disposable cuvette rings for 32 measurements eliminates the time-consuming process of handling individual cuvettes
Magnetic stirring of the reaction mixture enables highest result quality even for sensitive assays such as HEMOSTAT D-Dimer

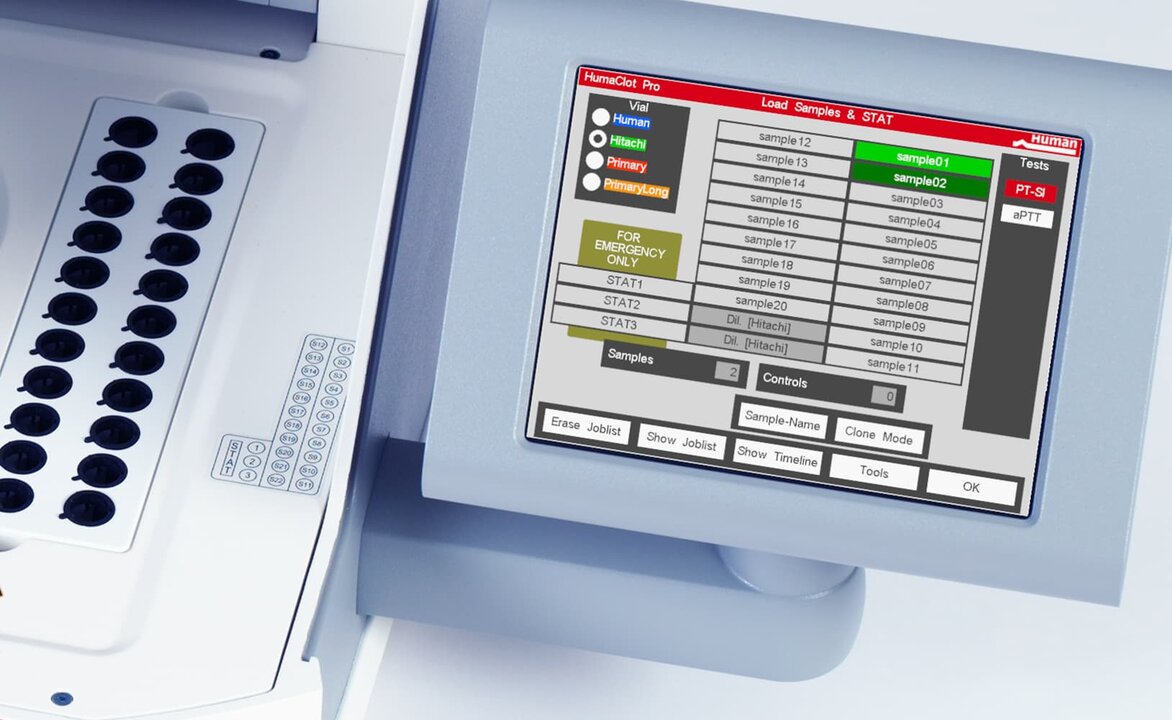

Intuitive and powerful software

The modern and intuitive user interface, coupled with touchscreen operation, simplifies usage and requires minimal training
Fast and easy access to all important functions

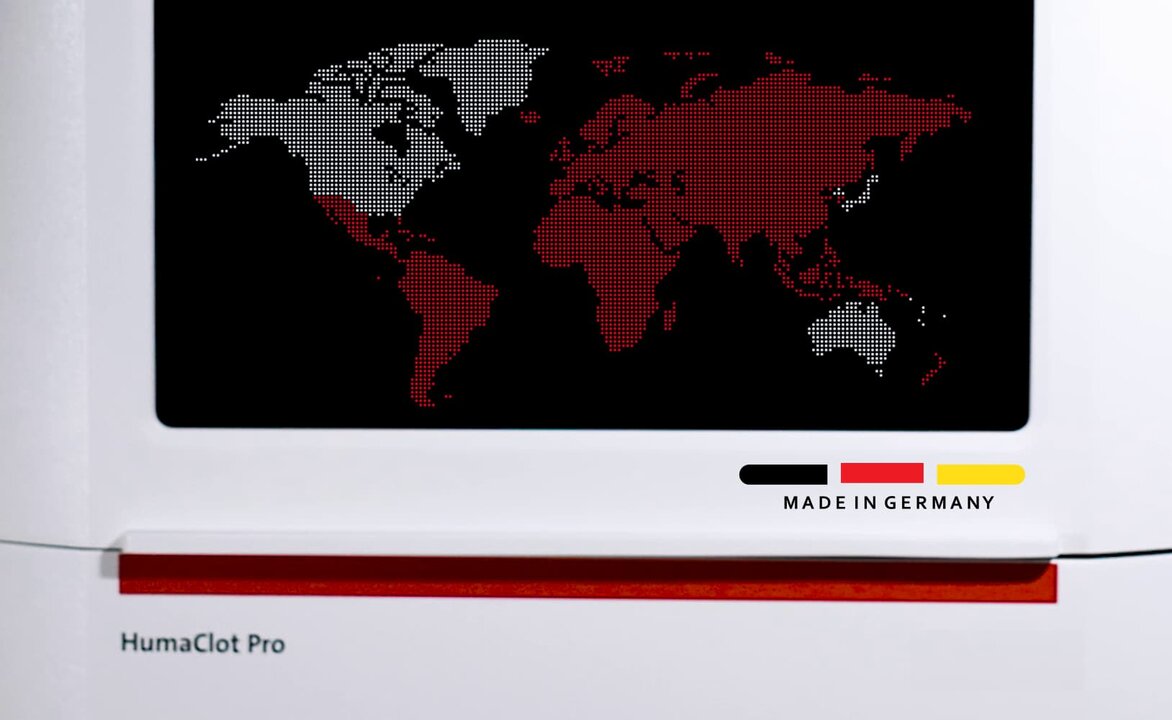

Quality Made in Germany

A proof of accuracy and reliability

Over 4,000 HumaClot instruments used in more than 100 countries worldwide

Techspecs

Analyzer type

Fully automated coagulation analyzer

Analysis modes

Coagulation, Chromogenic, Immunologic-turbidimetric

Throughput

Up to 100 PT / h
Up to 58 tests /h with mixed parameters (PT, aPTT, FIB)

Wavelength

405 nm, 570 nm, 740, nm

Validated HUMAN applications

Prothrombin Time (PT), Activated Partial Thromboplastin Time (aPTT),
Thrombin Time (TT), Fibrinogen (FIB), D-Dimer (DD), Antithrombin (AT3),
free Protein S (fPS)

Sample incubation positions (37°)

32 positions per cucvette ring

Reagent positions

15 and 2 wash/clean solution positions

LIS/LIMS

Yes, by LAN bidirectional (FTP auto-send, auto-request)

Physical dimensions (W x D x H)

Instrument without any components: 83 x 46 x 61 cm
Space requirements routine use: 100 x 60 x 80 cm
Weight: 38 kg

Environmental

Operation: Temperature 15…30°C / Humidity max. 10-85 % non condensing
Altitude max. 4000 m
Transport: Temperature 2...50°C / Humidity max. 10-85 % non condensing
Noise level: ≤ 56 db
