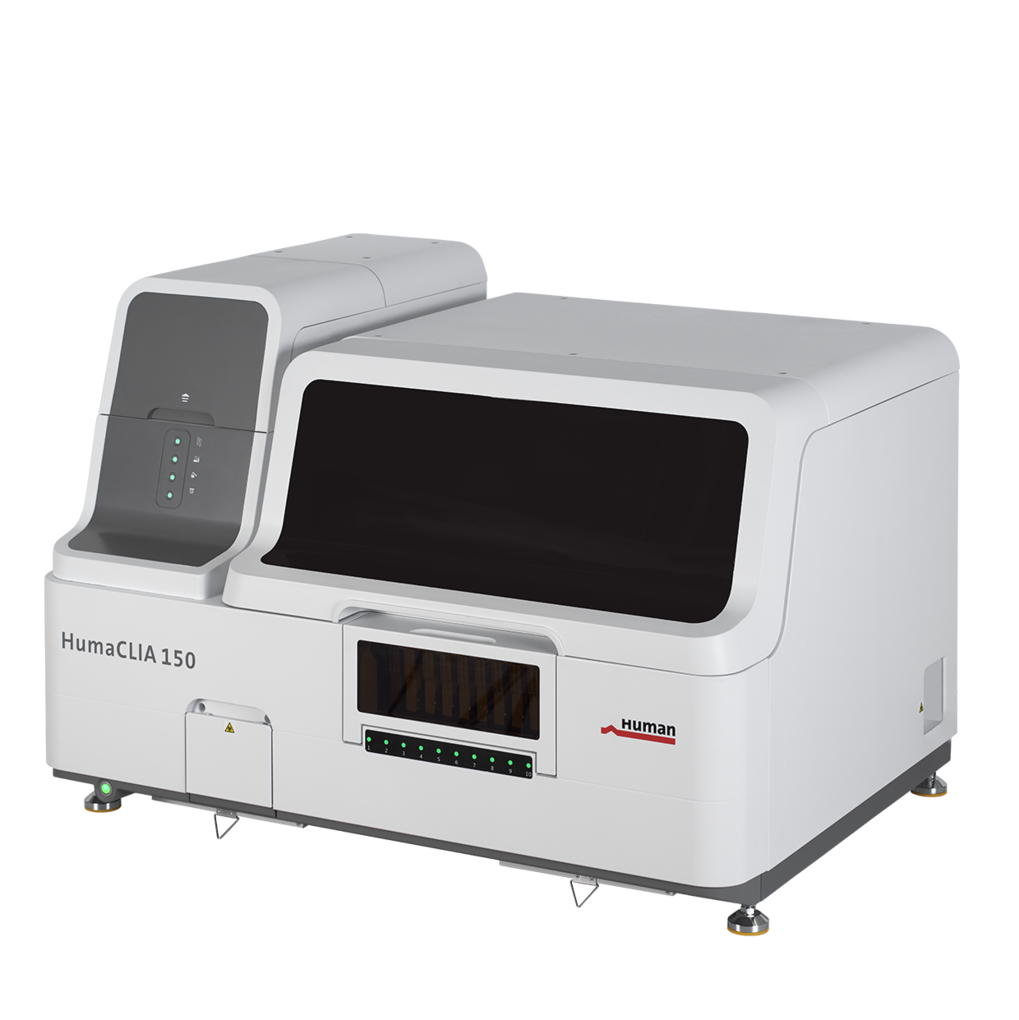

HumaCLIA 150

Name: HumaCLIA 150
Brand: HUMAN Diagnostics Worldwide
SKU: 15910
Availability: InStock

CoreLab DXCLIAInstrumentsAnalyzers

Price per unit:

XXX,XX €

Get a consultation

Fully-automated, continuous-loading chemiluminescence immunoassay (CLIA) system

The random-access HumaCLIA 150 system is the ideal fit for every low to mid-volume diagnostic laboratory, with assays for thyroid, fertility hormones, tumor and cardiac markers, and bone metabolism; among many others to choose from. The system requires little training thanks to its intuitive layout and user-friendly operator interface. Its large loading capacity for consumables, samples and reagents translates into an excellent walk-away time.

Throughput

Up to 150 tests/hour

Sample positions

50 sample rack positions for continuous loading

Reagent positions

20 cooled onboard reagent cartridge positions

Reaction tube capacity

Benefit from the convenience of bulk packs and load up to 1000 single cuvettes

Broad assay portfolio

Wide selection of tests available: thyroid, fertility hormones, tumor and cardiac markers, bone metabolism, anaemia, inflammation, and more

Integrated reagent and sample barcode readers.

Convenient sample and reagent management including unique cartridge vial identification.

Full-result traceability

All at one glance: Sample ID, reagent lot and control lot, consumable lots, unique reagent vial ID, calibrator lot and time

Modern, intuitive user interface

Fast and easy access to all routine functions

Test request format

Single assay testing requests, customizable assay profile definitions, single assay testing requests, reflex testing and individual re-run testing.

Efficient data management with bi-directional LIS

Easy integration into hospital and laboratory management systems with flexible connectivity options

Enhance your lab workflow with effective reagent management

20 cooled cartridge positions
Integrated positive reagent barcode identification
Unique cartridge identifier with real-time monitoring of reagent levels and remaining number of tests
Automated micro-particle mixing for consistent and reliable results

Emergency testing at a max with intelligent sample management

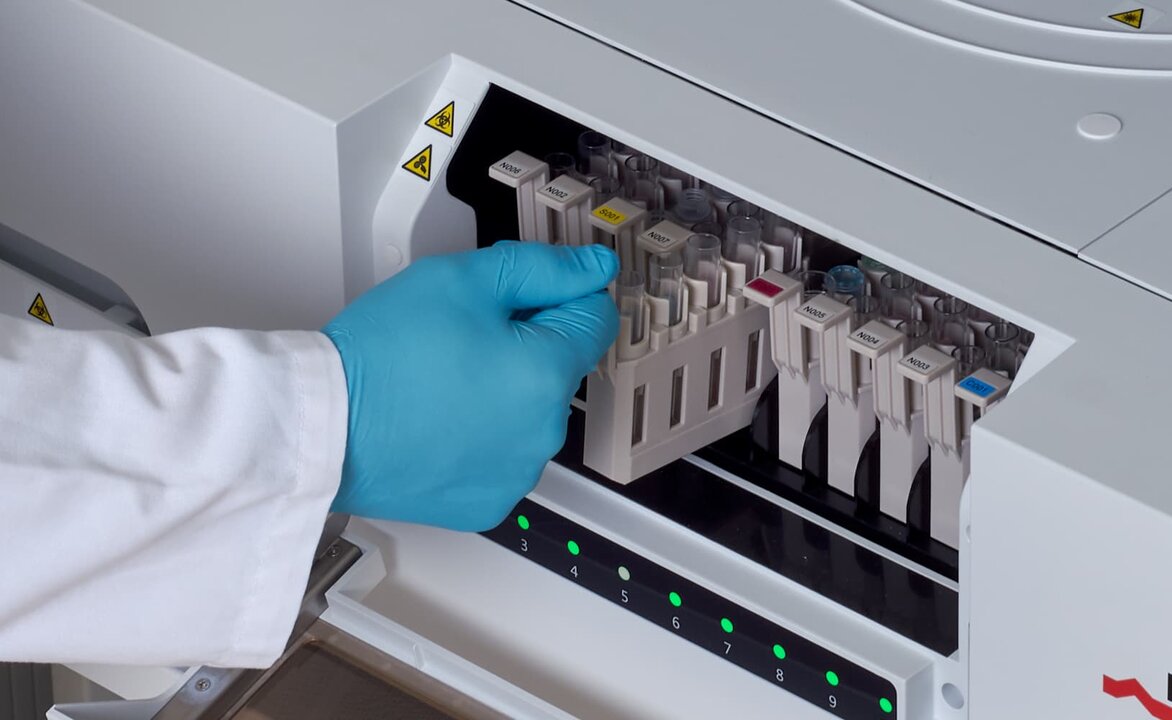

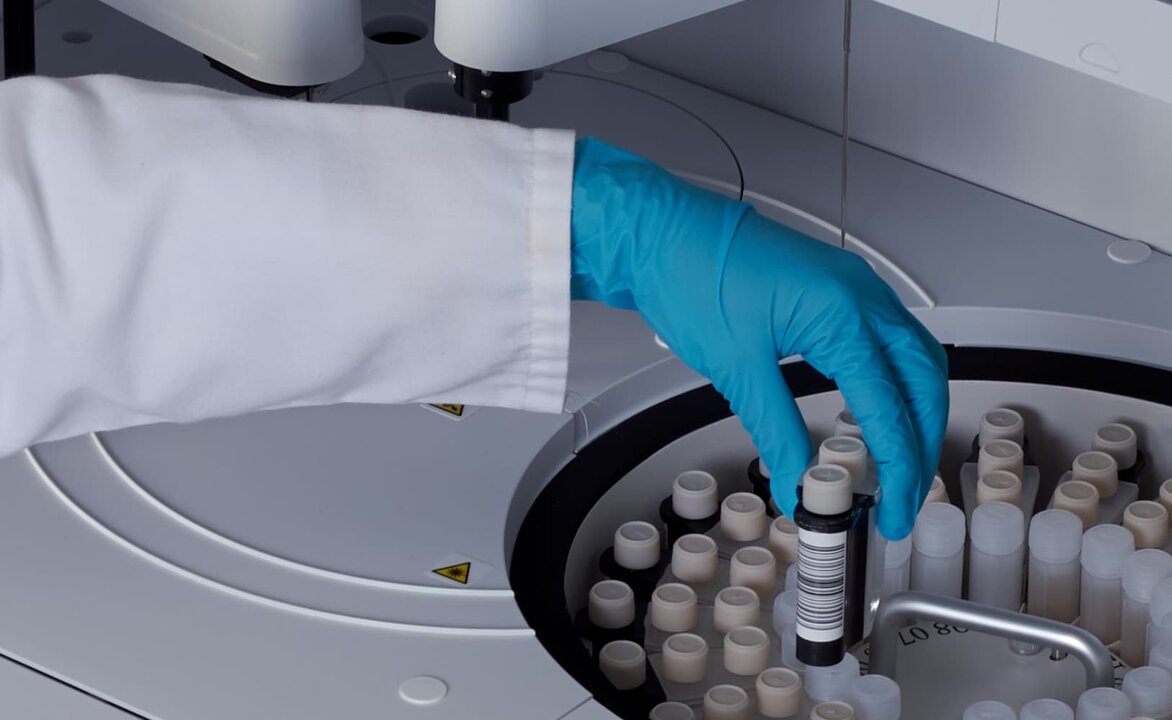

50 sample rack positions for continuous loading of primary and secondary tubes or sample cups
Rapid response capability: 50 STAT positions for emergency testing
Accurate postive sample identification with internal barcode reading

Increase your flexibility with random-access, continuous reaction vessel loading

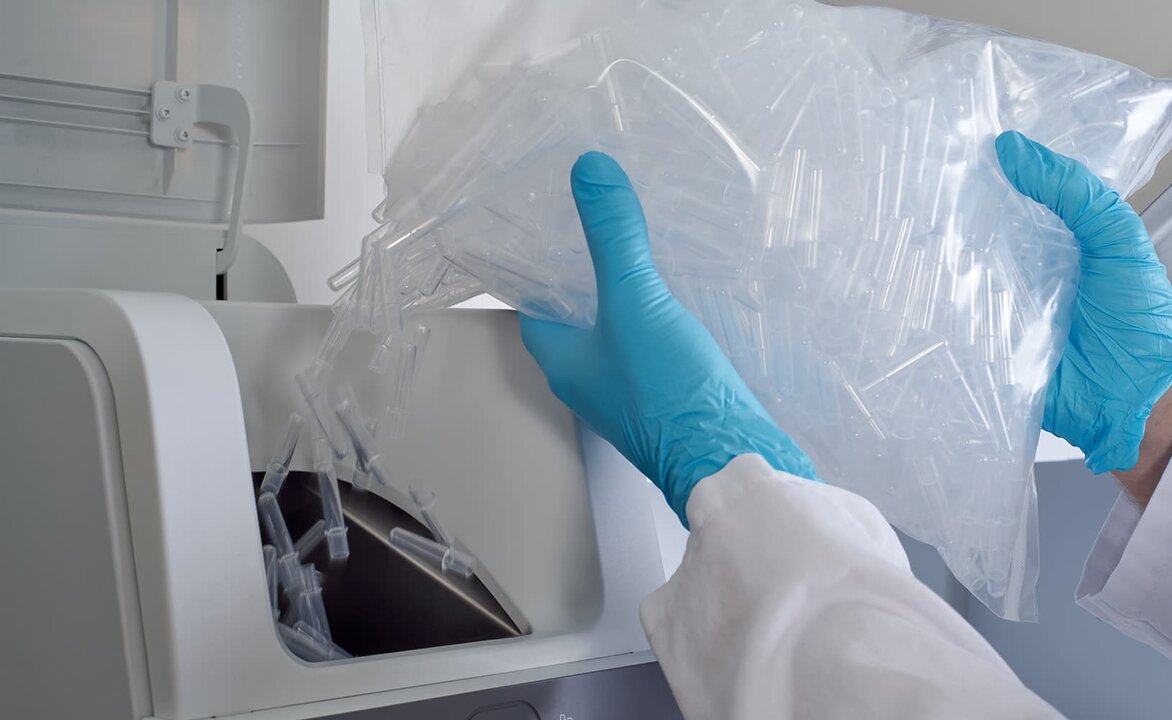

Quick and easy cuvette refilling even during a run

Get full visibility, have zero interruptions with carefree consumable management

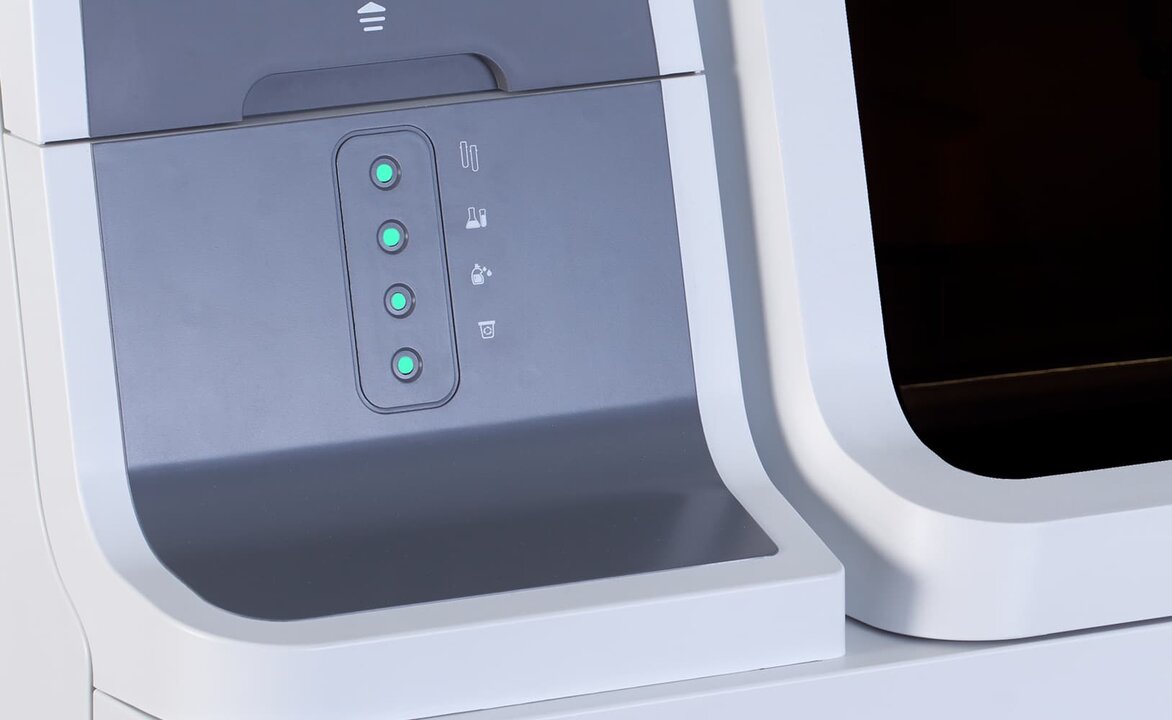

Provides an at-a-glance status of consumables like cuvettes, trigger and pre-trigger solutions, wash buffer, and solid waste
Pre-alert functions to allow flexible replenishment or disposal of consumables, thereby reducing the risk of delayed results and enhancing your overall workflow efficiency

Maximized testing output

Tailored to customer needs with two 50-test cartridges for maximum flexibility - ideal also for low-throughput parameters

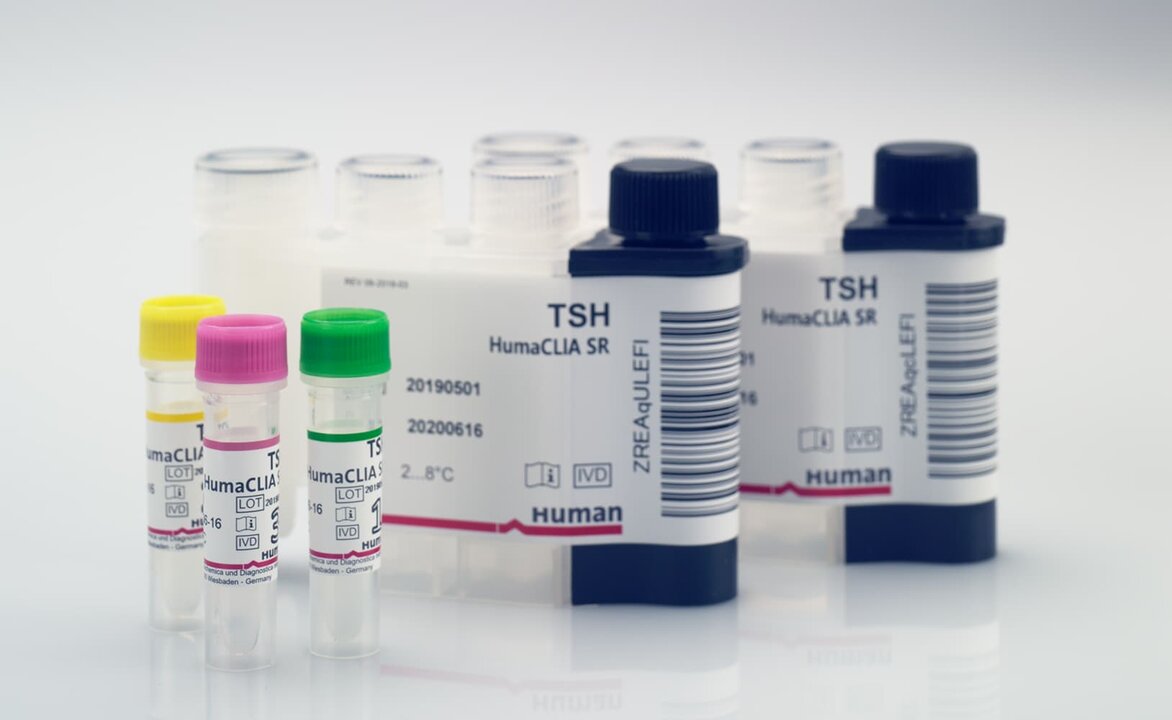

Ready-to-use reagents and calibrators in one kit
Wide selection of tests available: thyroid, fertility hormones, tumor and cardiac markers, bone metabolism, anaemia testing, and more

Techspecs

Analyzer type

Random-access, continuous loading chemiluminescence immunoassay system (CLIA)

Throughput

Up to 150 tests/hour

Time to first result

Fast results after 12 minutes. Most assays after around 30 minutes

Operation modes

Continuous loading
Emergency samples (immediate access and processing)

Reaction cuvettes

Single use reaction cuvettes in bulk format

Pre-dilution

Automatic predilution of samples

LIS / HIS

Bidirectional, auto-request, auto-send, HL7/ ASTM E 1394 / ASTM E 1381 protocol

Physical dimensions (W x D x H)

Instrument w/o any components: 103 x 75 x 71 cm
Weight: 160 kg

Environmental

Operating temperature: 10 - 30°C
Operation humidity: ≤70%RH (without condensation)
Altitude: up to 2000 m
